illustrative picture

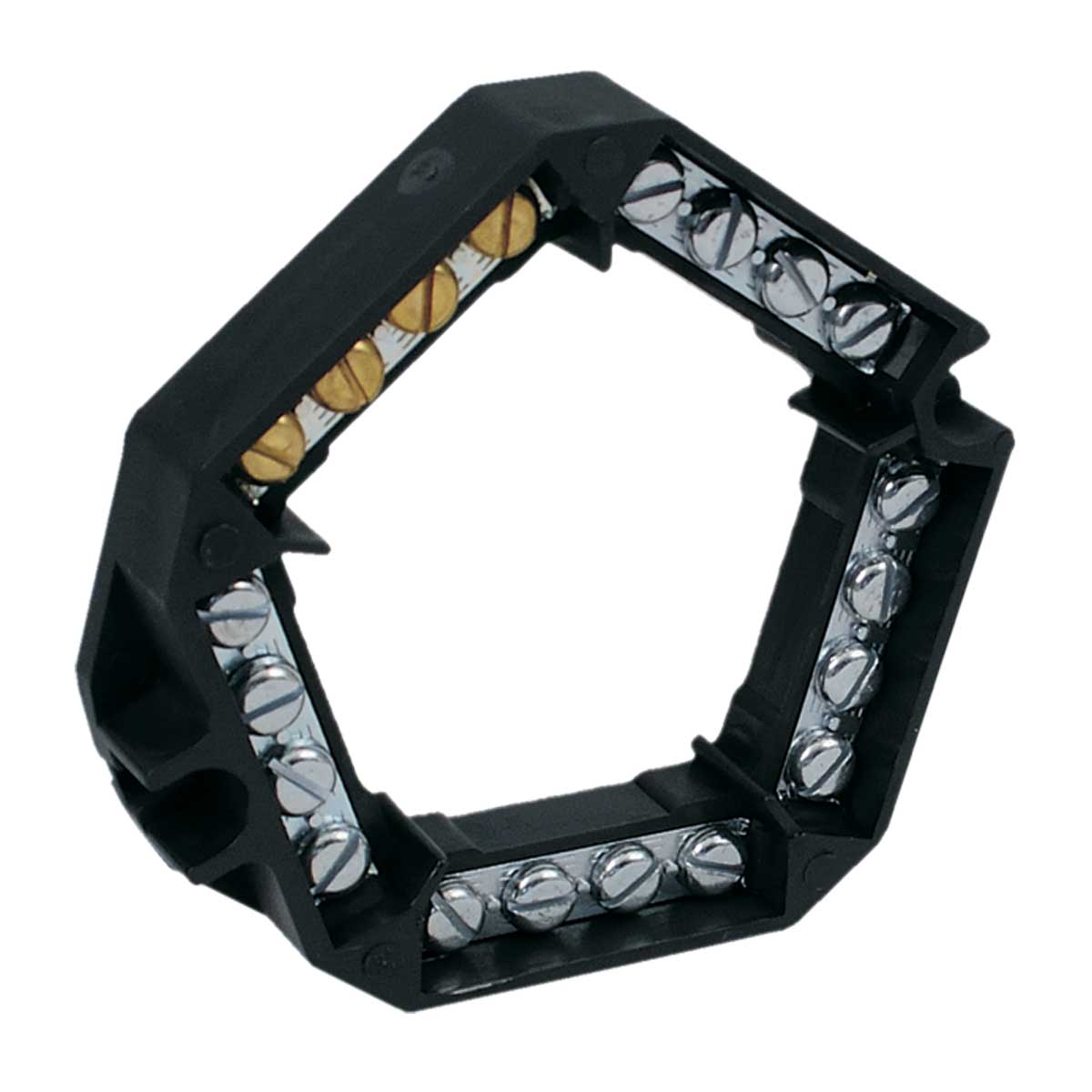

SP-96 FB - svorkovnice
To access download of 3D models login or register.
EAN code8595057614758
Gewichtung0.07 kg/pcs
Halogenfreies Materialyes
Selbstlöschend30 sec.
Nennspanung<= 500 V
Temperaturbeständigkeit-30 - 105 °C
Flammwidrigkeit850 °C

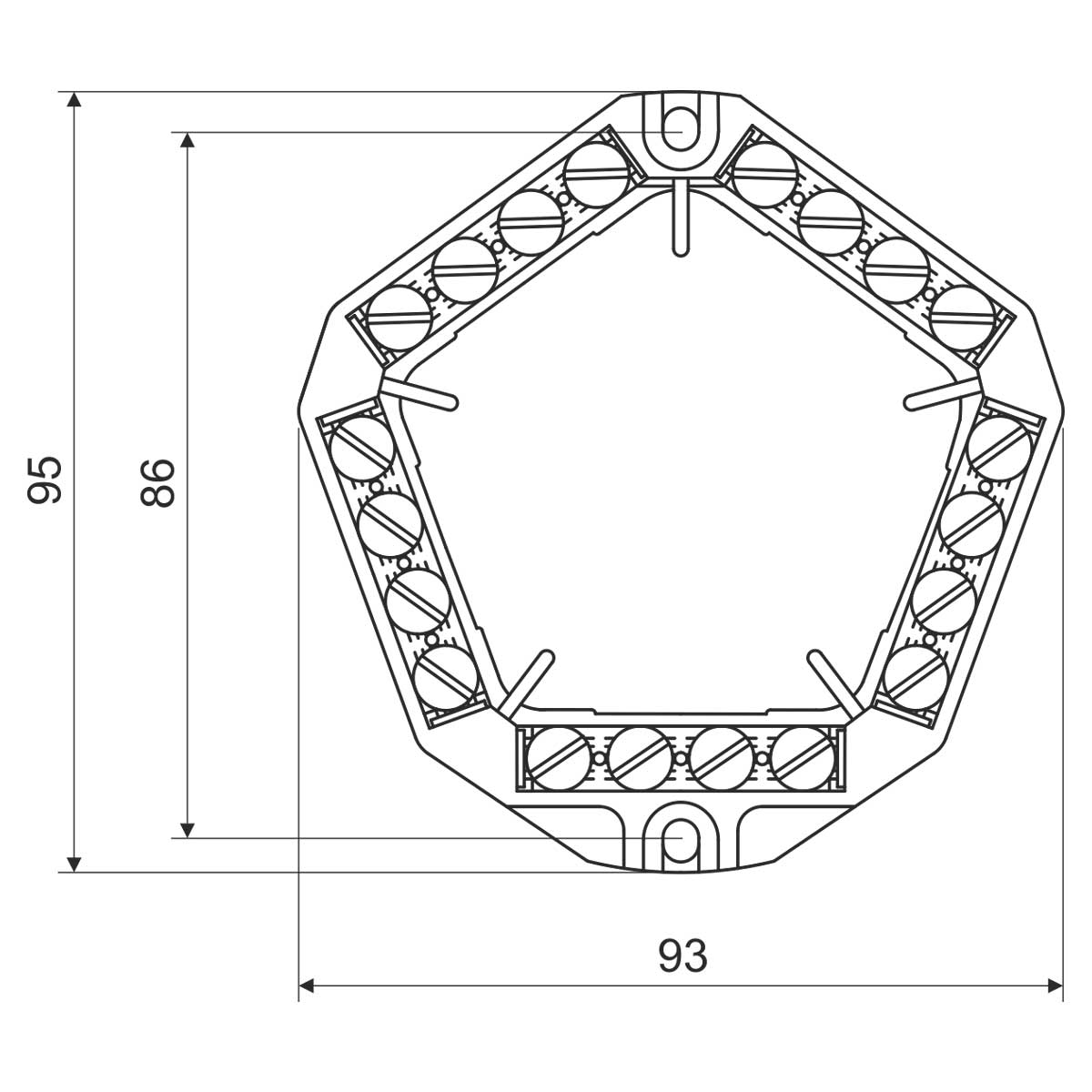

Breite93 mm
Höhe95 mm
Dicke16 mm
Leiterdurchschnitt20 x 4
BrandklasseA1 - F
Der Norm entsprechendČSN EN 60 670-1
Verpackungsbescheibungpacked in shrink foil

Intended into distribution boxes with fixing spacing of 86 mm (KR 97, KR 97/5, KR 97/L). Four separate fields for connecting up to four conductors of up to 4 mm2 in diameter. For voltages of up to 500 V.
