EAN code8595057603370
Zolltarifnummer85363030
Gewichtung0.51 kg/pcs
Farbedark grey
MaterialPVC
Selbstlöschend30 sec.
Nennspanung<= 400 V
Nennstrom<= 16 A
Temperaturbeständigkeit-5 - 60 °C
Flammwidrigkeit650 °C
Breite167 mm
Höhe167 mm
Tiefe78 mm
BrandklasseA1 - D
Ausdehnung des untergelegten Materials bei Feuer
Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1 - F
SchutzartIP 54
Der Norm entsprechendČSN EN 60 670-1
Verpackungsbescheibung
the screws inserted in the box, each box is packed in a shrink foil and labeled

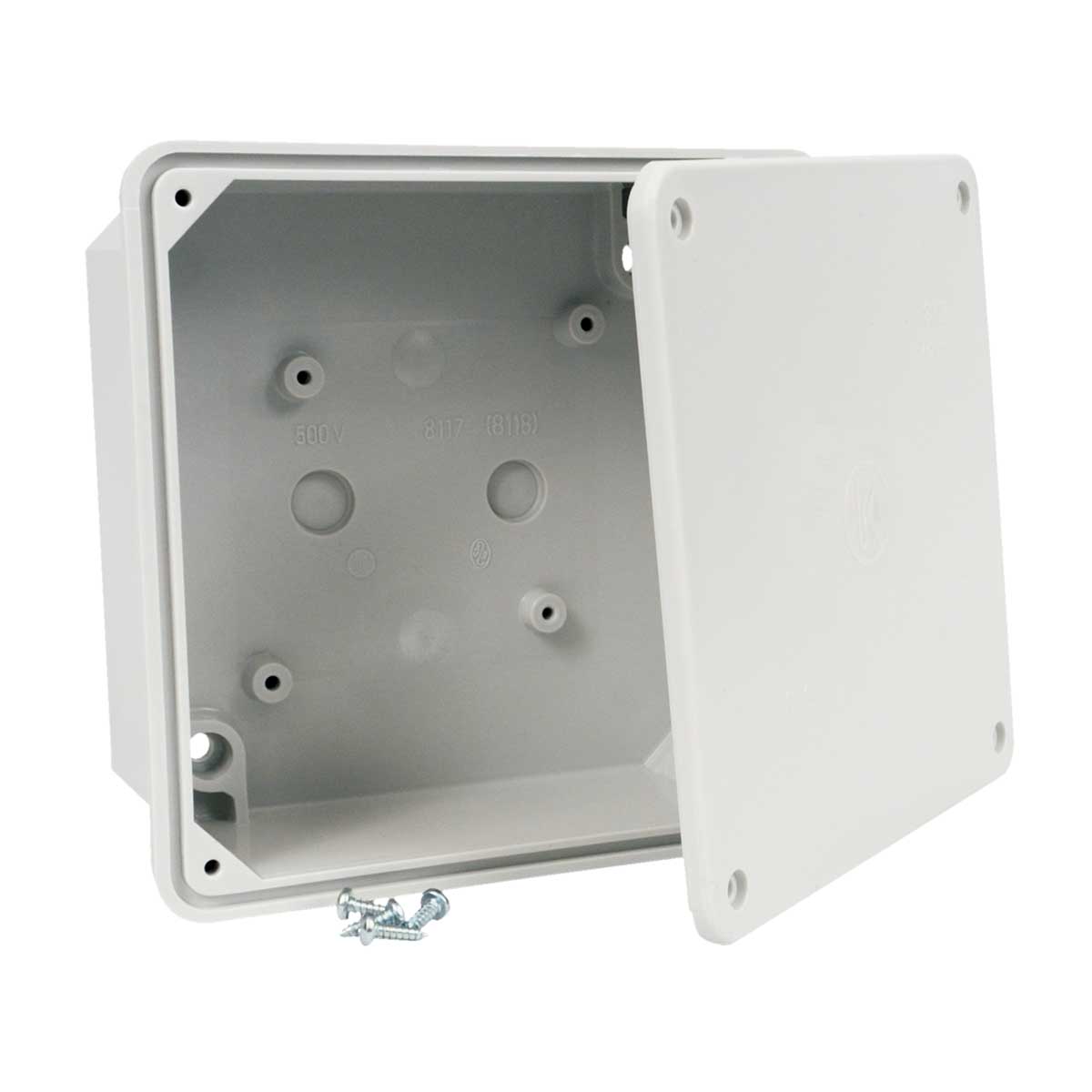

For installation in environment with increased humidity, dust, chemical and corrosion resistance in environments with increased risk of mechanical damage. Closed box without inlets. To install on materials with fire classes E or F, use thermally insulating pad.
