EAN code8595057632738
Zolltarifnummer85363030
Gewichtung0.54 kg/pcs
MaterialPVC
Selbstlöschend30 sec.
Nennspanung<= 400 V
Nennstrom<= 16 A
Temperaturbeständigkeit-5 - 60 °C
Flammwidrigkeit850 °C

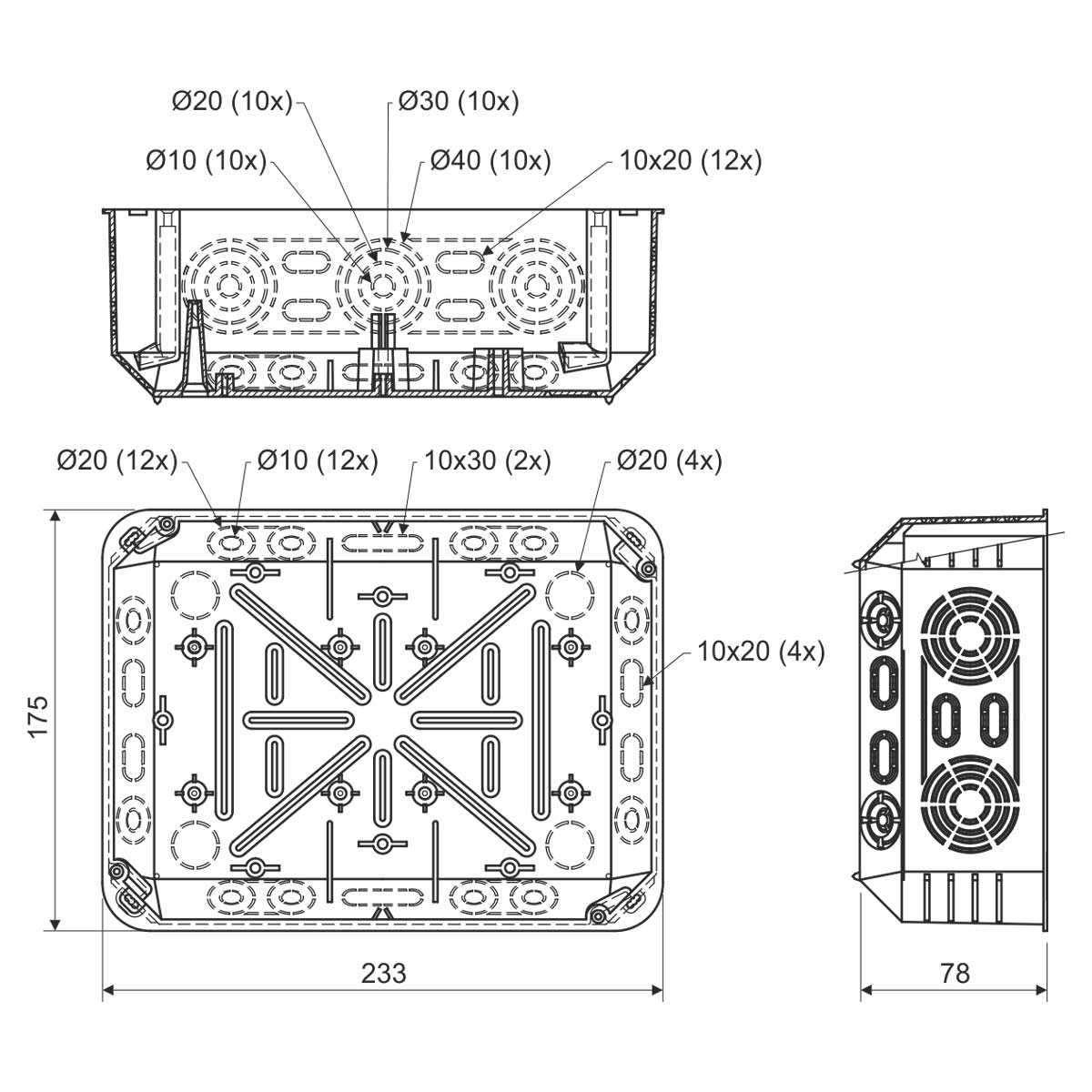

Breite234 mm
Höhe176 mm
Tiefe79 mm
BrandklasseA1 - D
Der Norm entsprechendČSN EN 60 670-1
Verpackungsbescheibung
individual boxes are wrapped in a shrink-foil foil and are labeled and embedded in cardboard

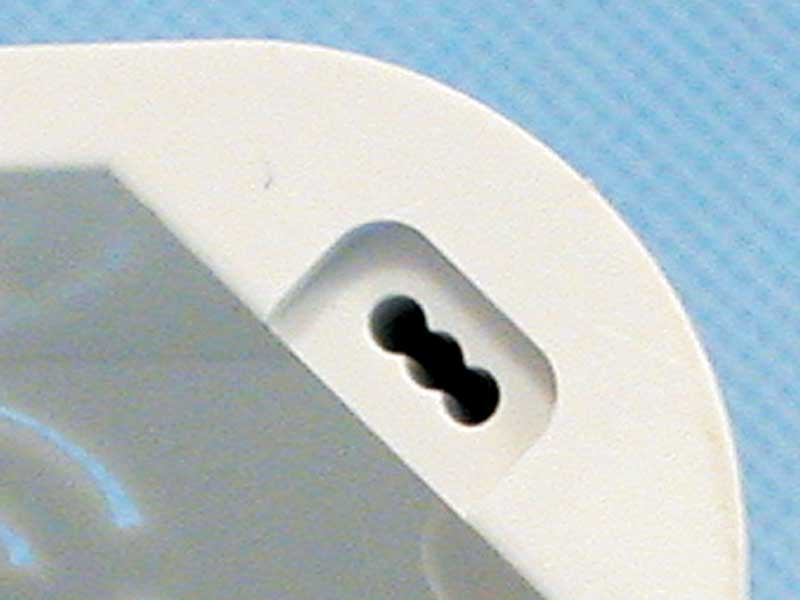

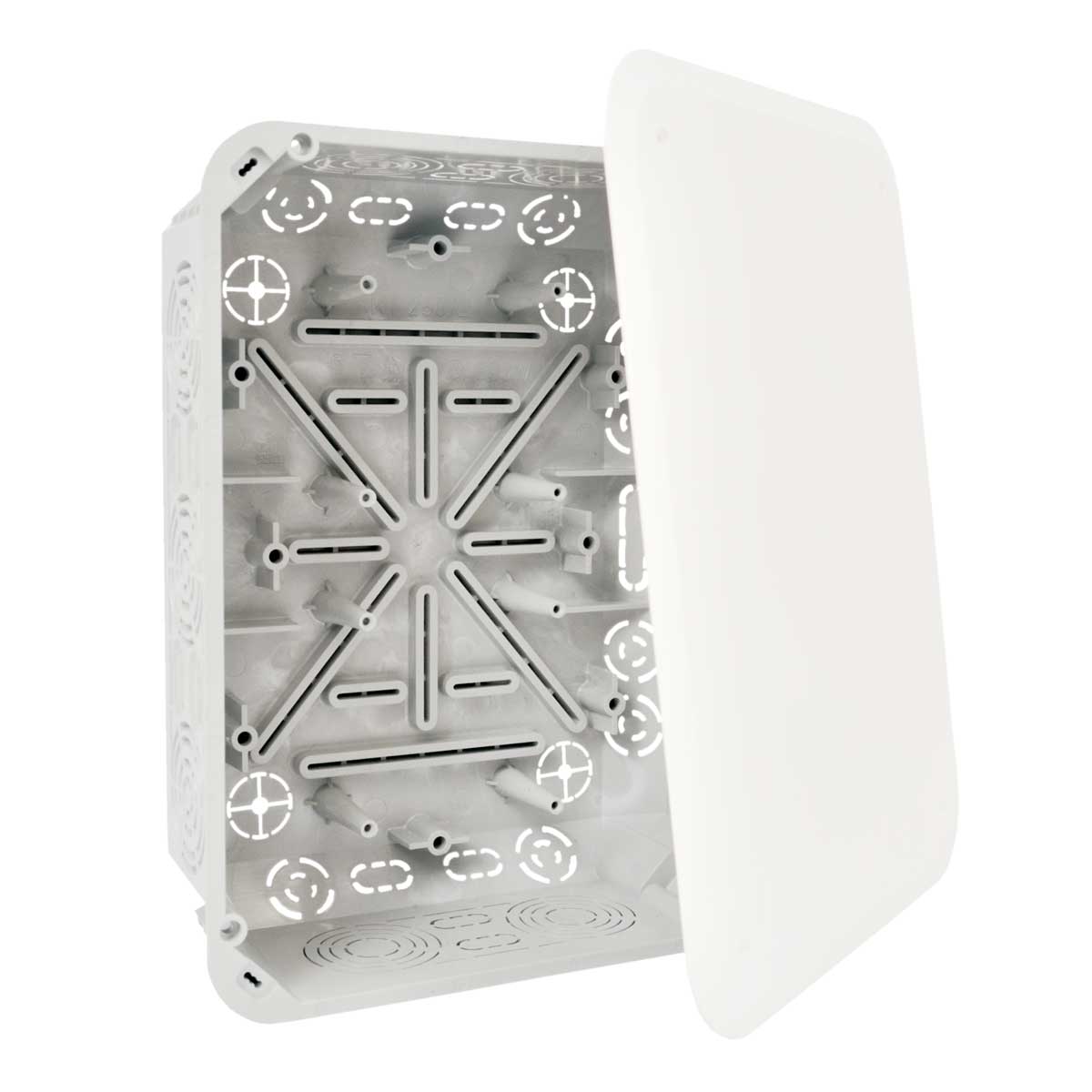

A large number of knockouts for inserting cables and pipes. Possibility to install support trunking TS 35 and equipotential terminal plate. Option to set the lid using oval holes in the box to the horizontal position. Possibility to break the sidewall for easier cable handling.
