EAN code8595057603363
Zolltarifnummer85363030
Gewichtung0.59 kg/pcs
Farbedark grey
MaterialPVC
Selbstlöschend30 sec.
Nennspanung<= 400 V
Nennstrom<= 16 A
Temperaturbeständigkeit-5 - 60 °C
Flammwidrigkeit650 °C

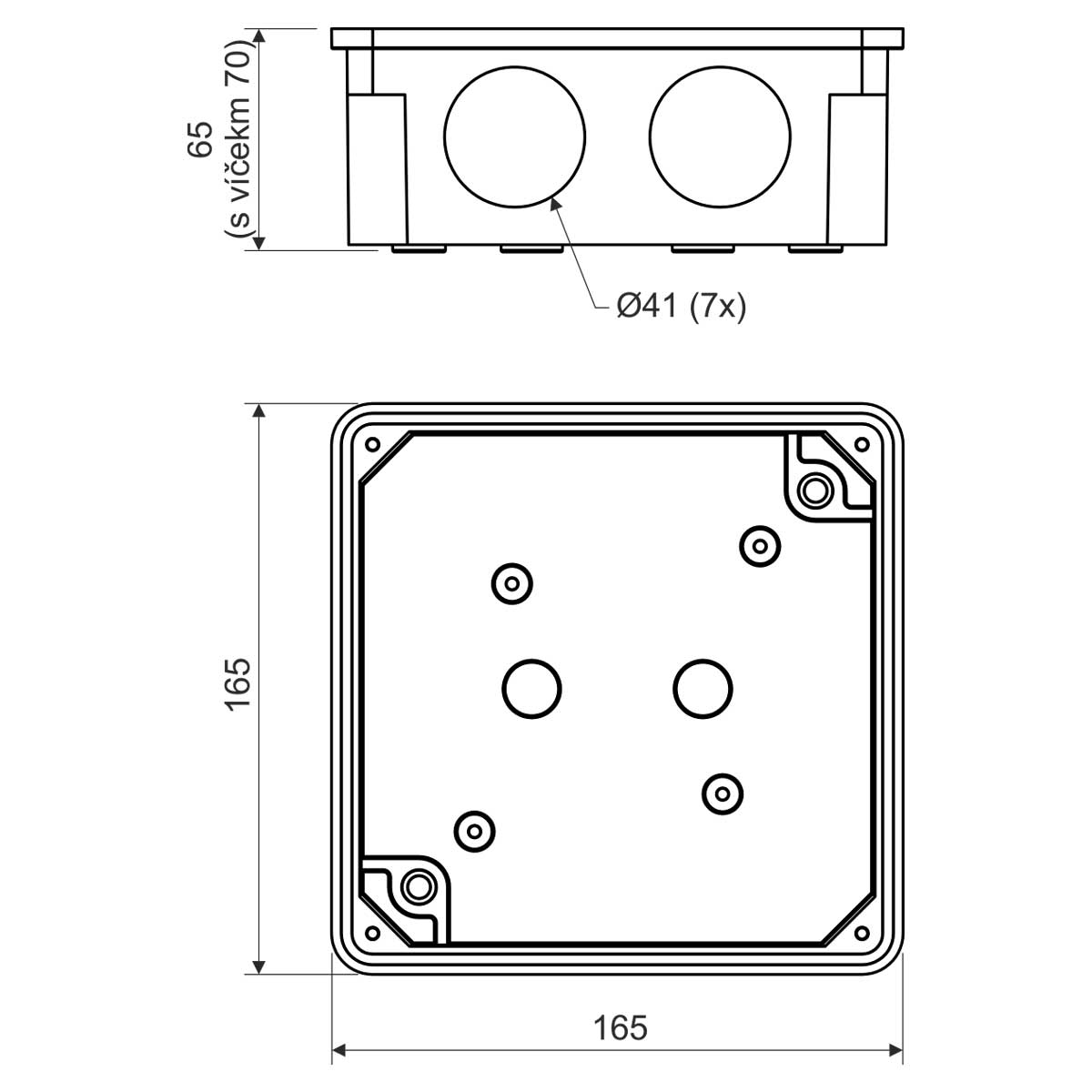

Breite167 mm
Höhe167 mm
Tiefe78 mm
BrandklasseA1 - D
Ausdehnung des untergelegten Materials bei Feuer
Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1 - F
SchutzartIP 54
Der Norm entsprechendČSN EN 60 670-1
Verpackungsbescheibung

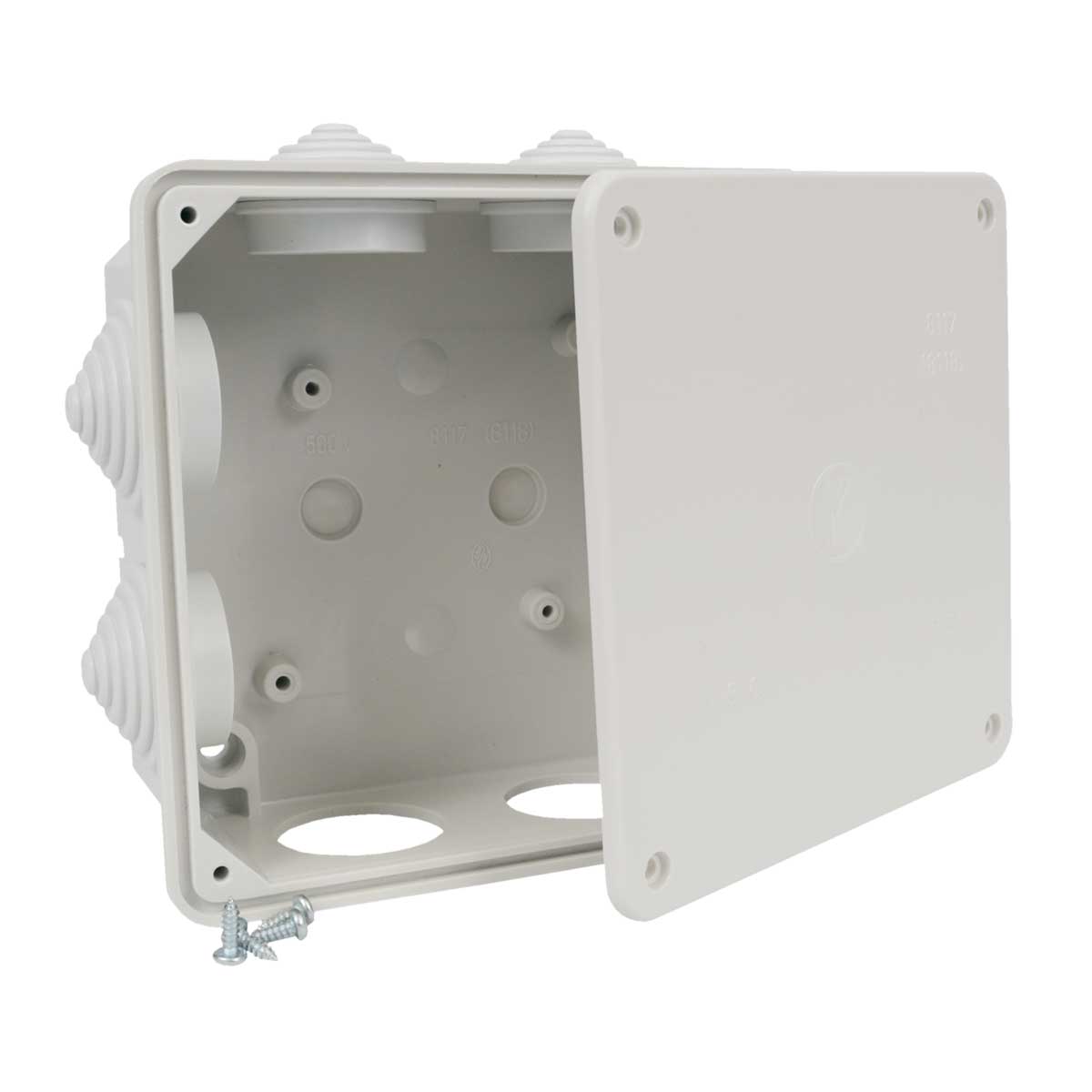

the grommets and screws for mounting lid inserted in the box, each box is packed in a shrink foil and labeled

For installation in environment with increased humidity, dust, chemical and corrosion resistance in environments with increased risk of mechanical damage. Universal grommets for cables and pipes, grommets can be ordered separately. To install on materials with fire classes E or F, use thermally insulating pad. Modification of this box is also available as Fire Resistant, see Systems with maintained functionality in fire catalog.
