EAN code8595057611672
Zolltarifnummer85363030
Gewichtung0.17 kg/pcs
MaterialPVC
Bleifreies Materialyes
Selbstlöschend30 sec.
Nennspanung<= 400 V
Nennstrom<= 16 A
Temperaturbeständigkeit-5 - 60 °C
Flammwidrigkeit850 °C

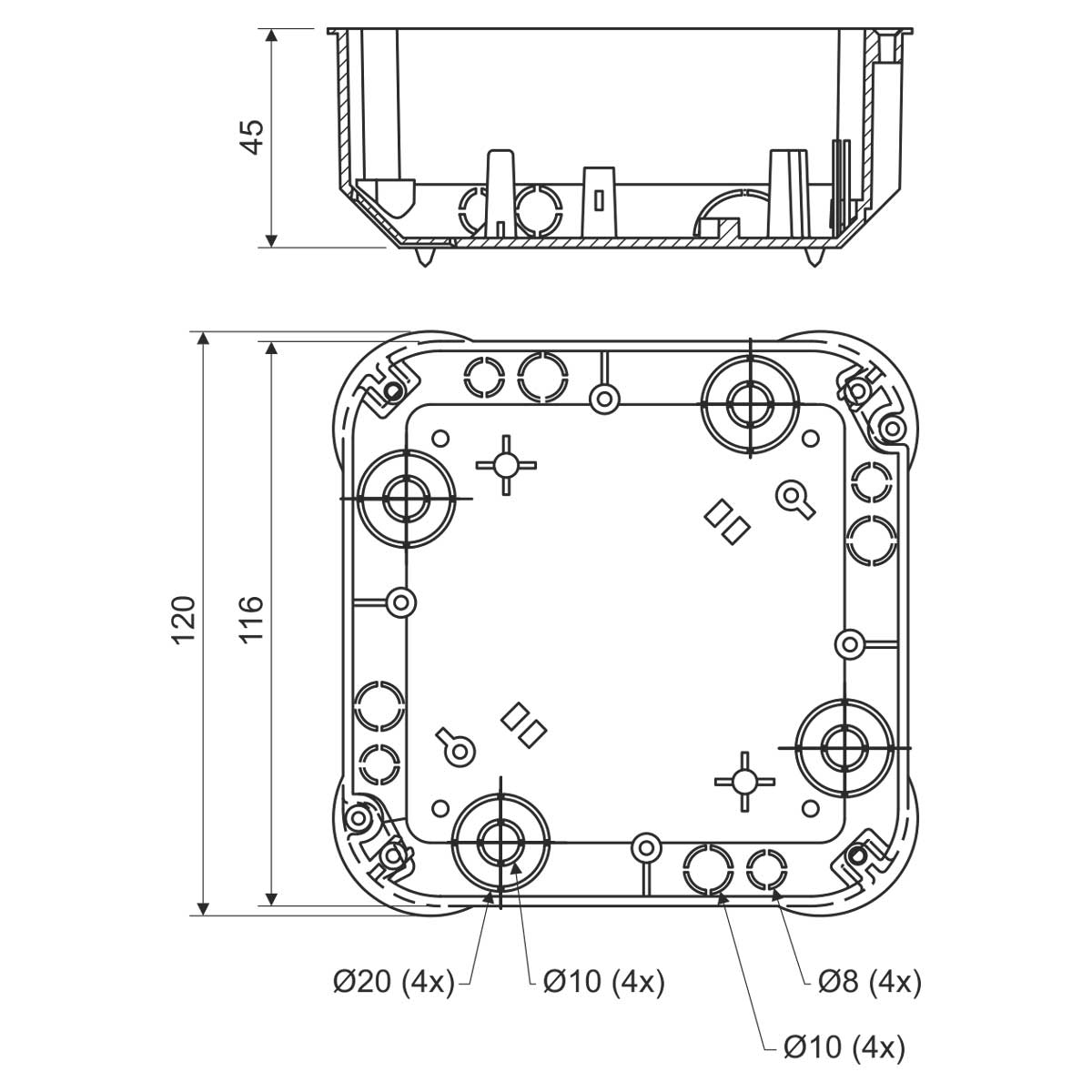

Breite116 mm
Höhe116 mm
Tiefe45 mm
Gefräst (gebohrter) Lochdurchmesser40 mm
Empfehlung des Herstellers
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
BrandklasseA1 - F
Der Norm entsprechendČSN EN 60 670-1
Verpackungsbescheibung
the screws for attaching the lid are inserted together with the partition into the box, the individual boxes are sealed together with the lid into the shrink foil and are labeled

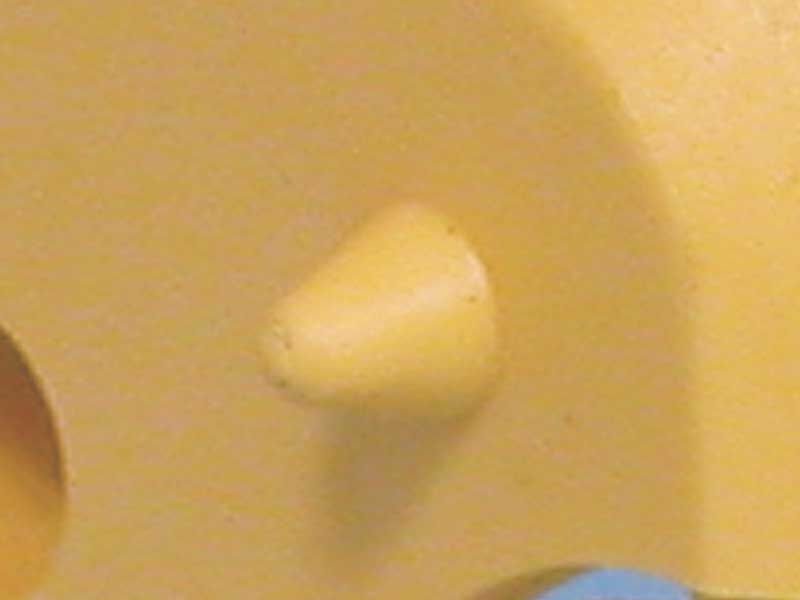

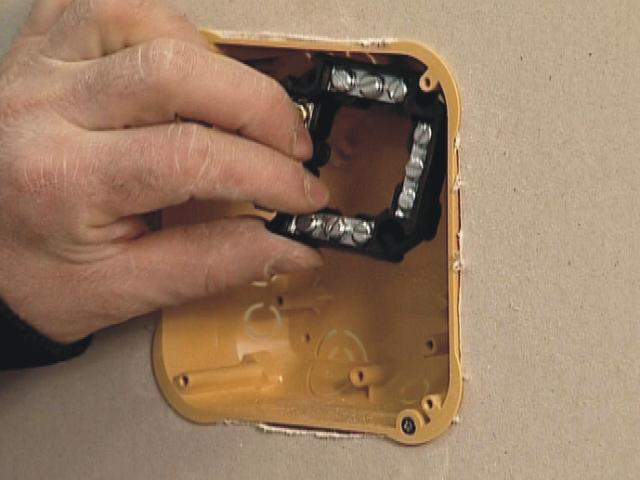

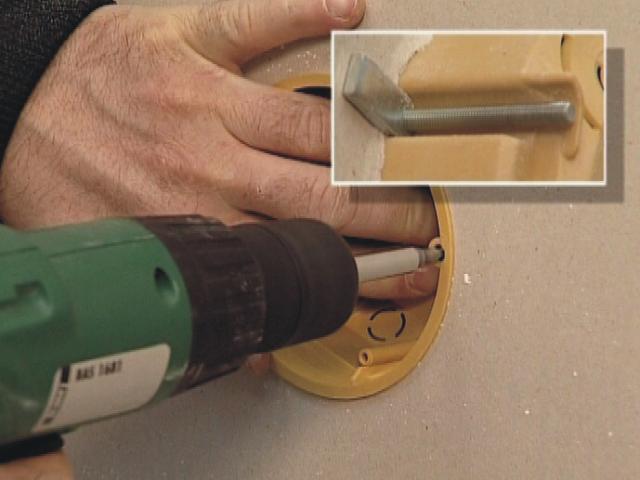

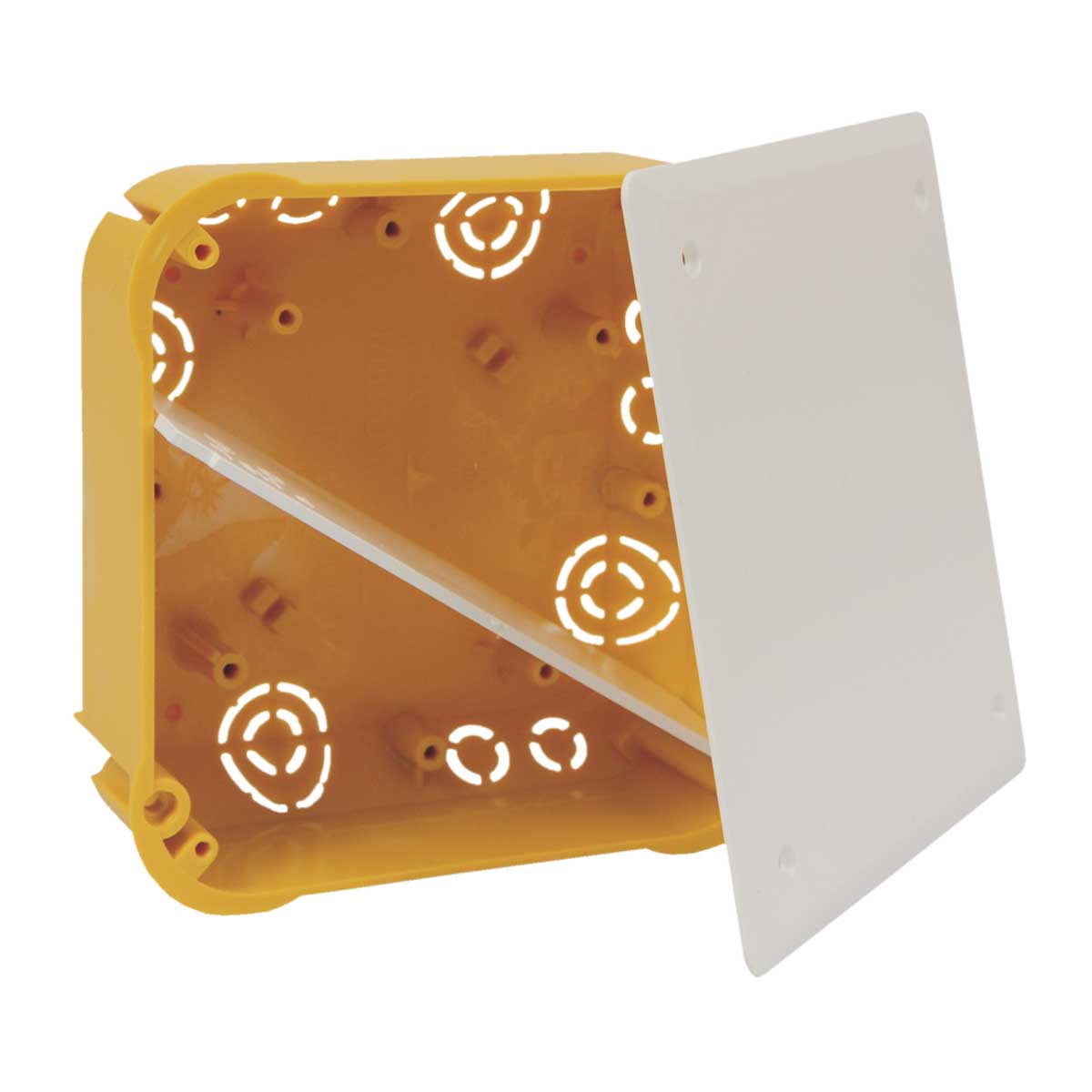

The box can be used with an S-96 or SP-96 terminal strip or with two S-66 terminal strips, separated by a partition. Possibility to connect two different circuits of up to 400 V separated by a partition. Mounting screws are fitted with a triple thread for quick installation. Outer side of the bottom contains holes for marking drill holes.
