EAN code8595057603356
Zolltarifnummer85363030
Gewichtung0.24 kg/pcs
Farbedark grey
MaterialPVC
Selbstlöschend30 sec.
Nennspanung<= 400 V
Nennstrom<= 16 A
Temperaturbeständigkeit-5 - 60 °C
Flammwidrigkeit650 °C

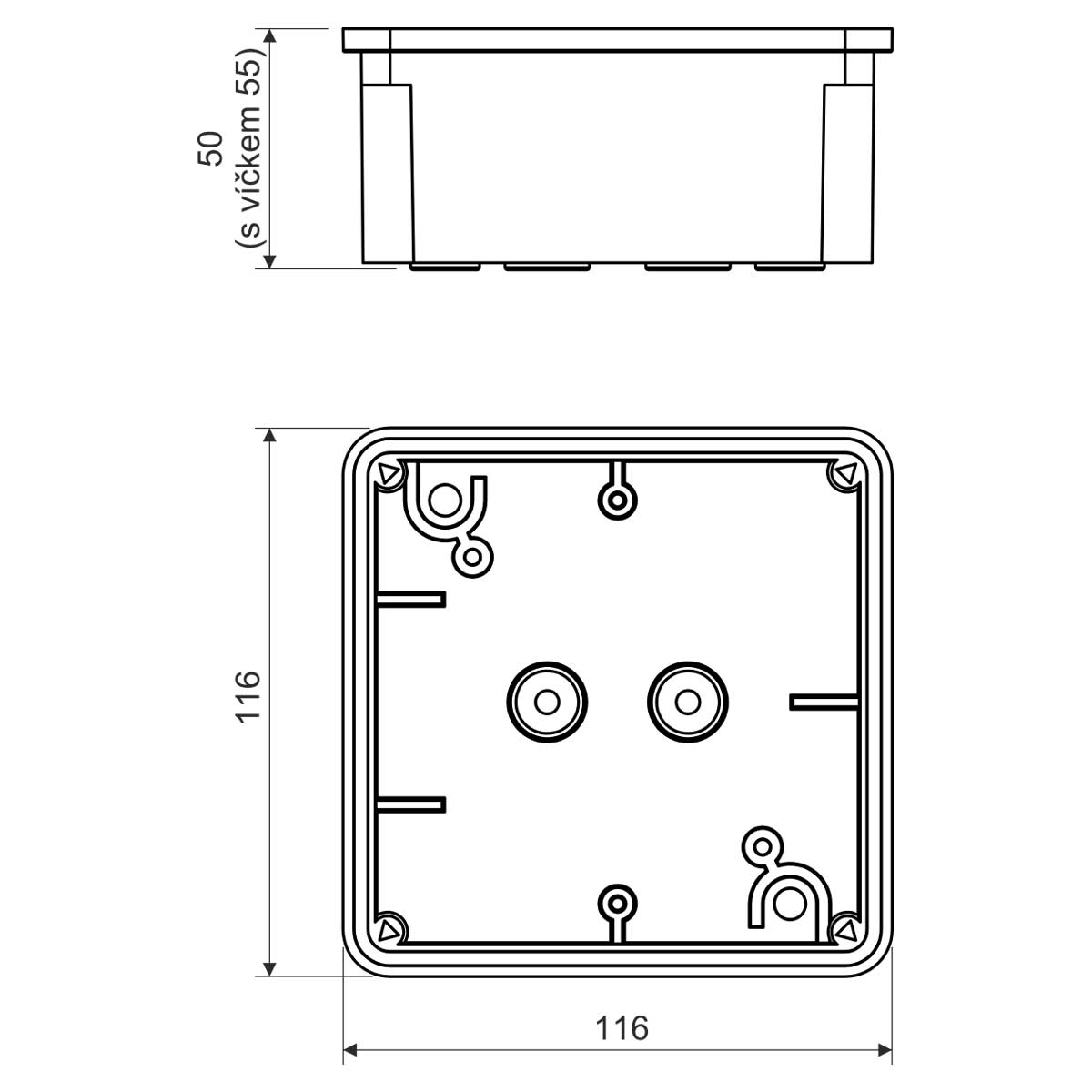

Breite117 mm
Höhe117 mm
Tiefe58 mm
BrandklasseA1 - D
SchutzartIP 54
Der Norm entsprechendČSN EN 60 670-1
Verpackungsbescheibung

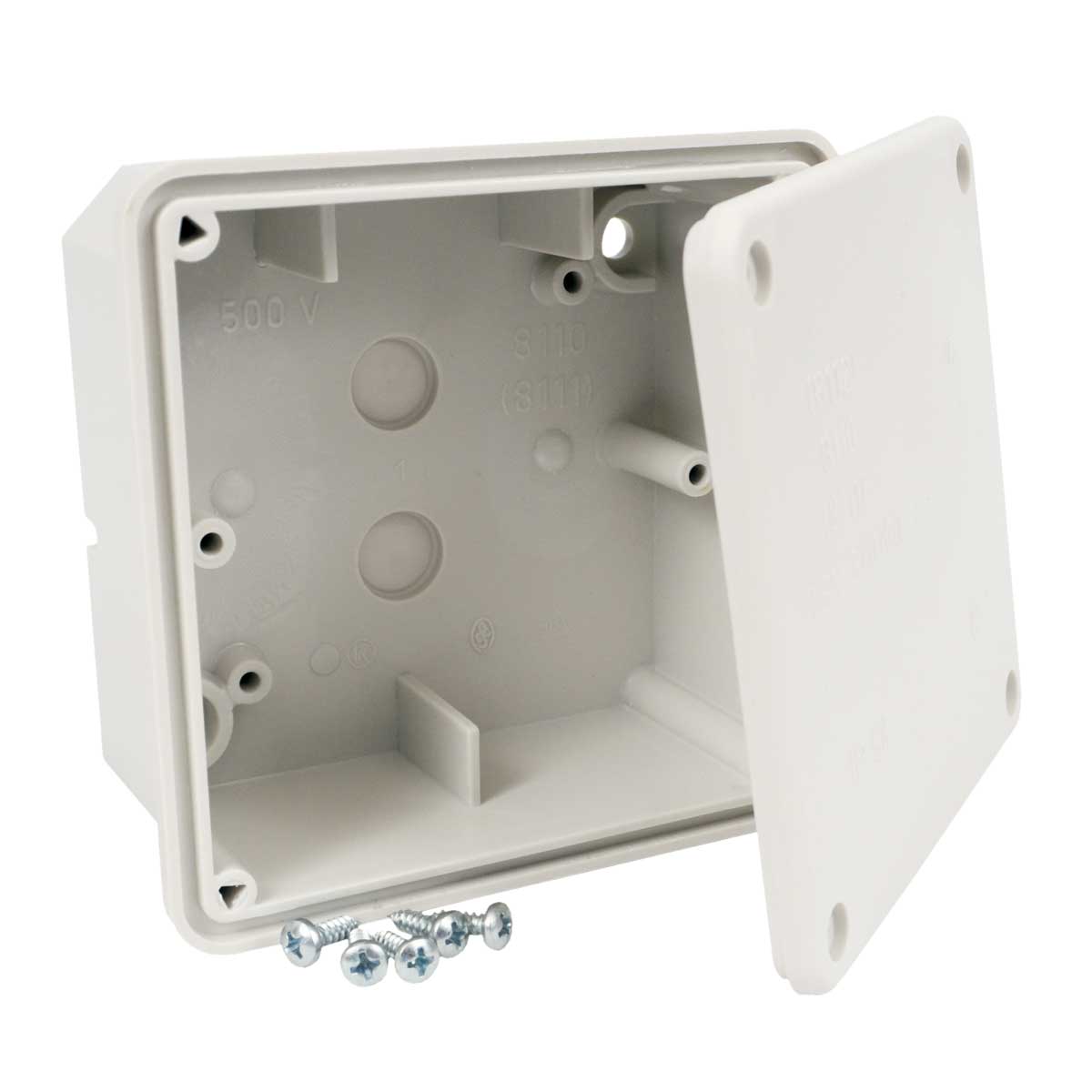

the screws inserted in the box, each box is packed in a shrink foil and labeled

For installation in environment with increased humidity, dust, chemical and corrosion resistance in environments with increased risk of mechanical damage. Closed box without inlets. To install on materials with fire classes E or F, use thermally insulating pad.
