EAN code8595057618640
Zolltarifnummer85363030
Gewichtung0.56 kg/pcs
MaterialPVC
Bleifreies Materialyes
Selbstlöschend30 sec.
Nennspanung<= 400 V
Nennstrom<= 16 A
Temperaturbeständigkeit-5 - 60 °C
Flammwidrigkeit850 °C

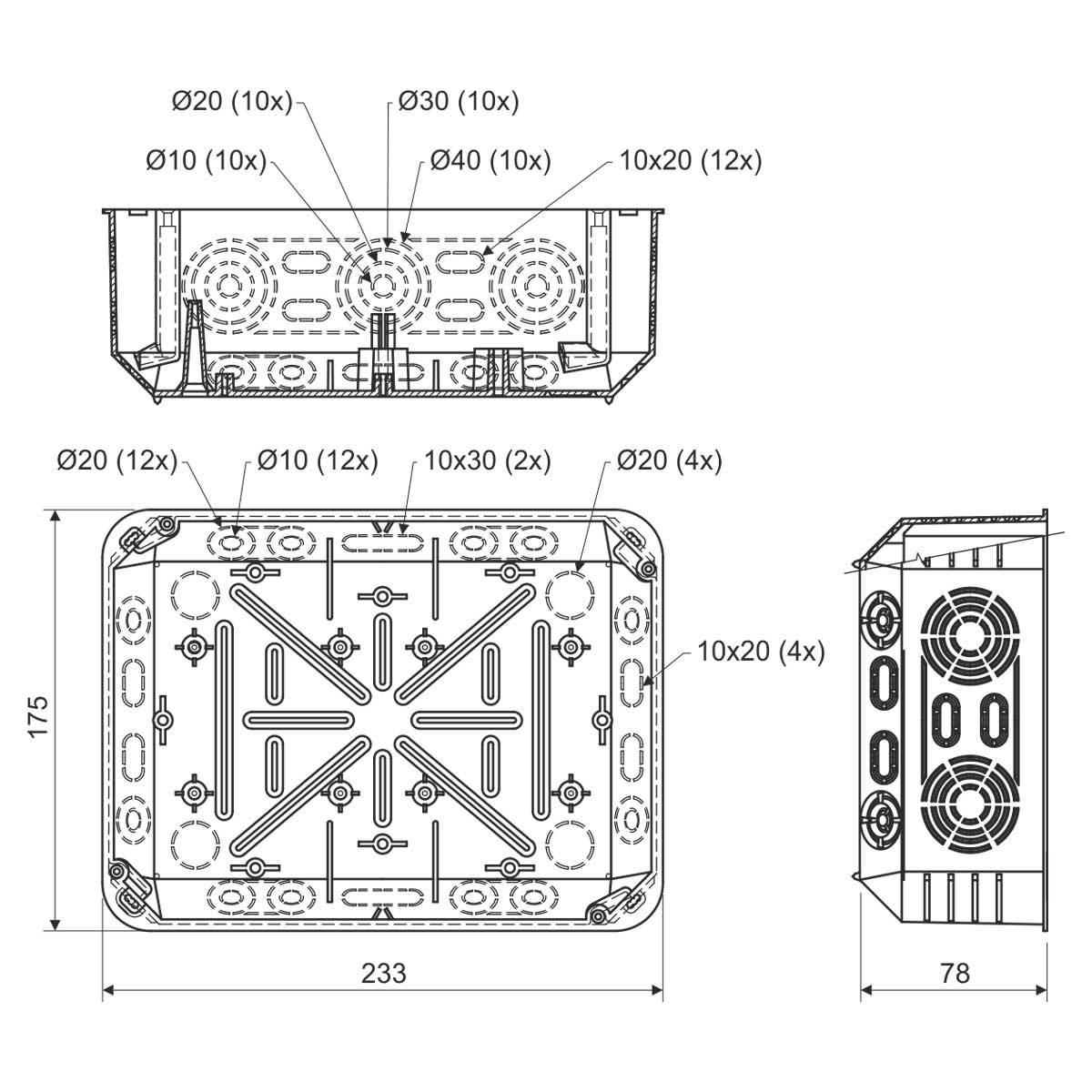

Breite234 mm
Höhe176 mm
Tiefe79 mm
Gefräst (gebohrter) Lochdurchmesser40 mm
Empfehlung des Herstellers
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
BrandklasseA1 - F
Der Norm entsprechendČSN EN 60 670-1
Verpackungsbescheibung
in individual boxes incuded the screws, covered with a lid, wrapped in a shrink foil and provided with a barcode and labeled

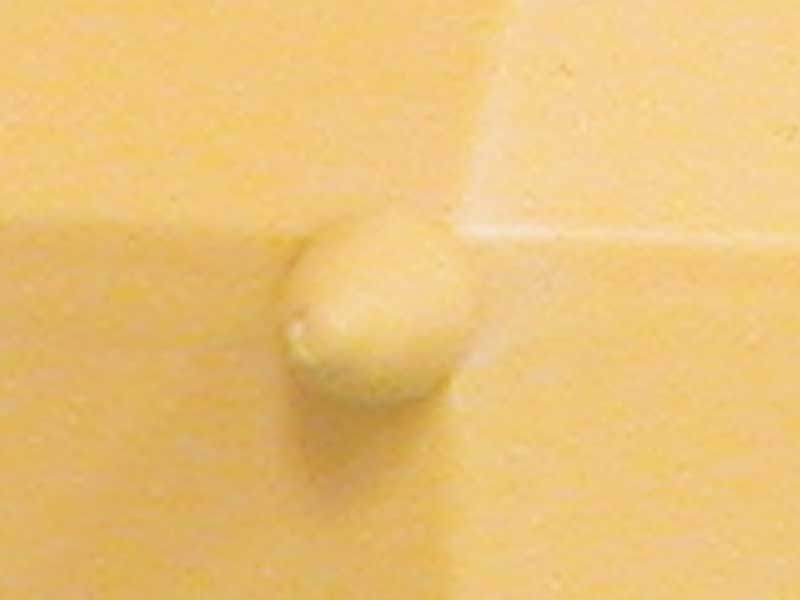

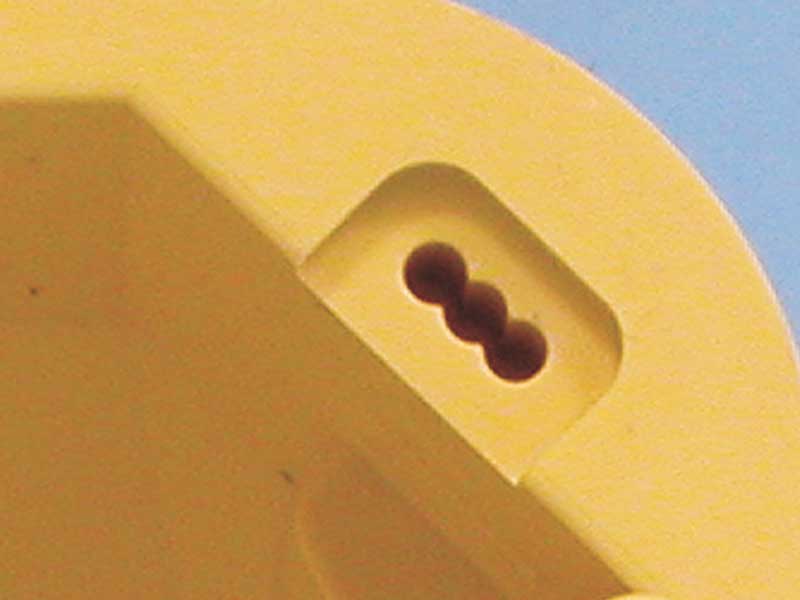

A large number of knockouts for inserting cables and pipes. Possibility to install the support trunking TS 35. Possibility to set the lid in a horizontal position. Possibility to break the sidewall for easier cable handling. Outer side of the bottom contains holes for marking drill holes. Mounting screws are fitted with a triple thread for quick installation.
