illustrative picture

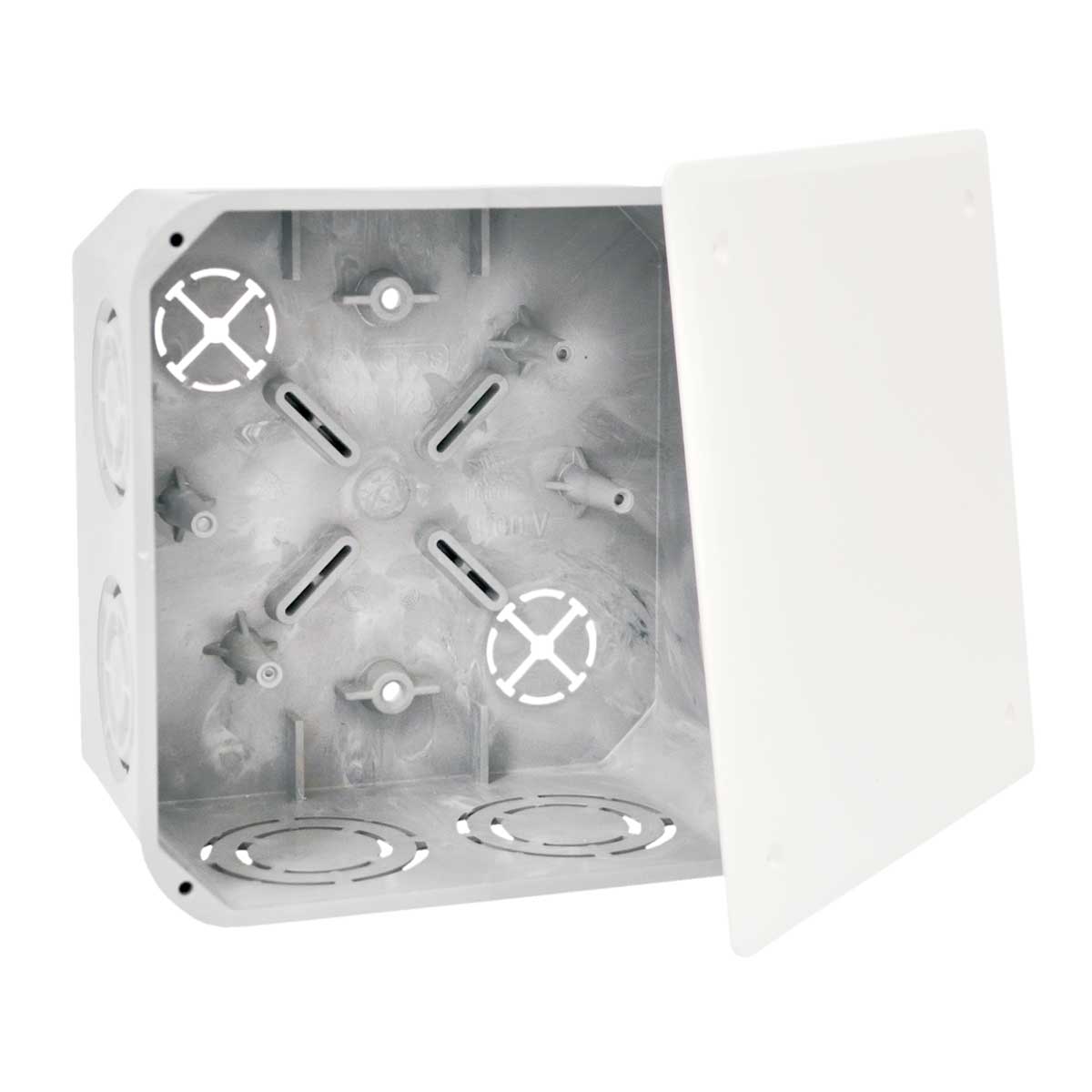

KO 125 KA - krabice s víčkem KO 125 V
To access download of 3D models login or register.
EAN code8595057600140
Gewichtung0.22 kg/pcs
Selbstlöschend30 sec.
Nennspanung<= 400 V
Nennstrom<= 16 A
Temperaturbeständigkeit-5 - 60 °C
Flammwidrigkeit850 °C

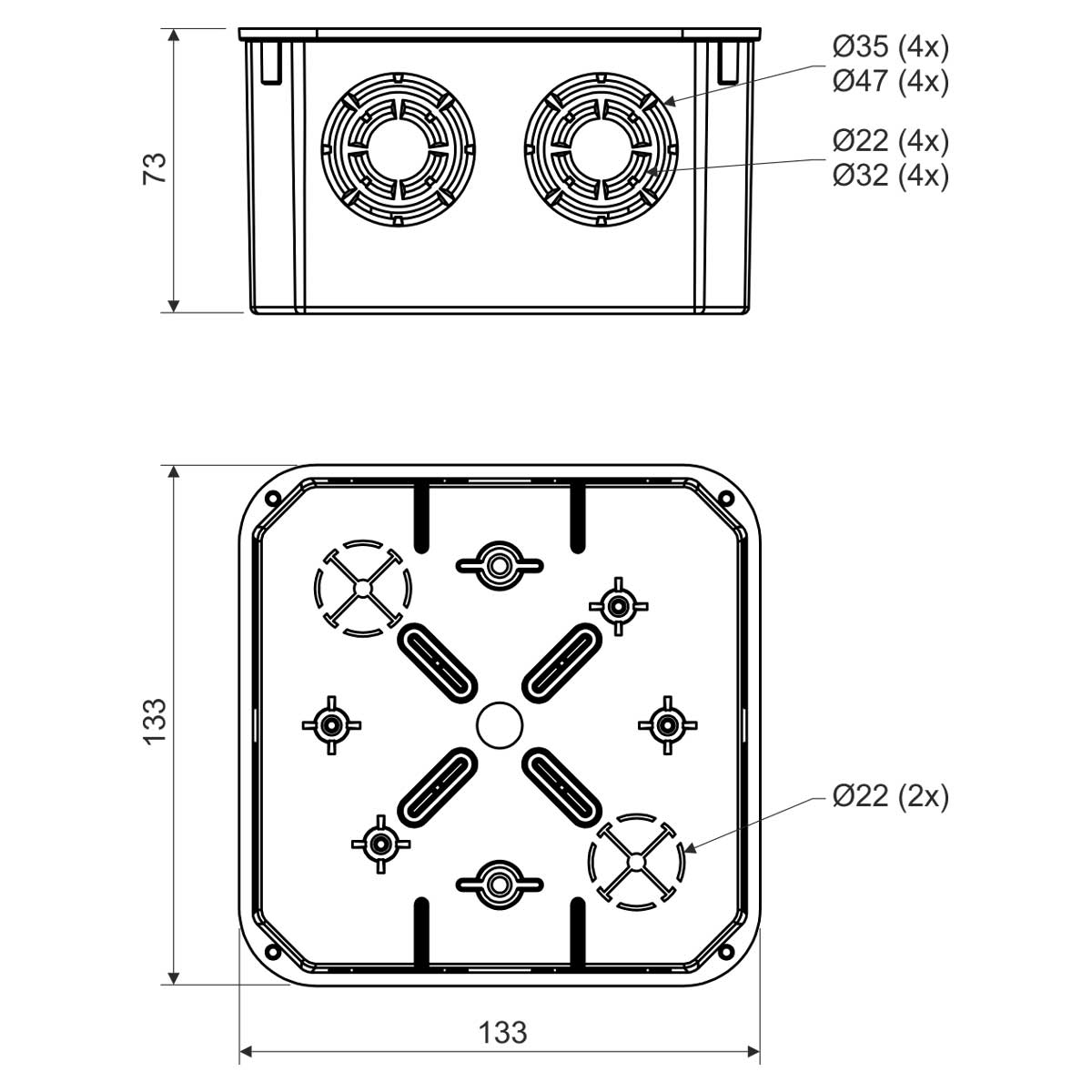

Breite132 mm
Höhe132 mm
Tiefe72 mm
BrandklasseA1 - D
Der Norm entsprechendČSN EN 60 670-1
individual boxes are individually wrapped in a shrink fiol and are labeled

A large number of knockouts for inserting cables and pipes. Possibility to install the support trunking TS 35 and terminal plates.
