EAN code8595057668683
Zolltarifnummer39259020
Gewichtung2.08 kg/m
Farbewhite
MaterialPVC
Bleifreies Materialyes
Selbstlöschend30 sec.
Temperaturbeständigkeit-5 - 60 °C
Flammwidrigkeit850 °C
Mechanische SchutzgradIK07
Stoßfestigkeit1 J

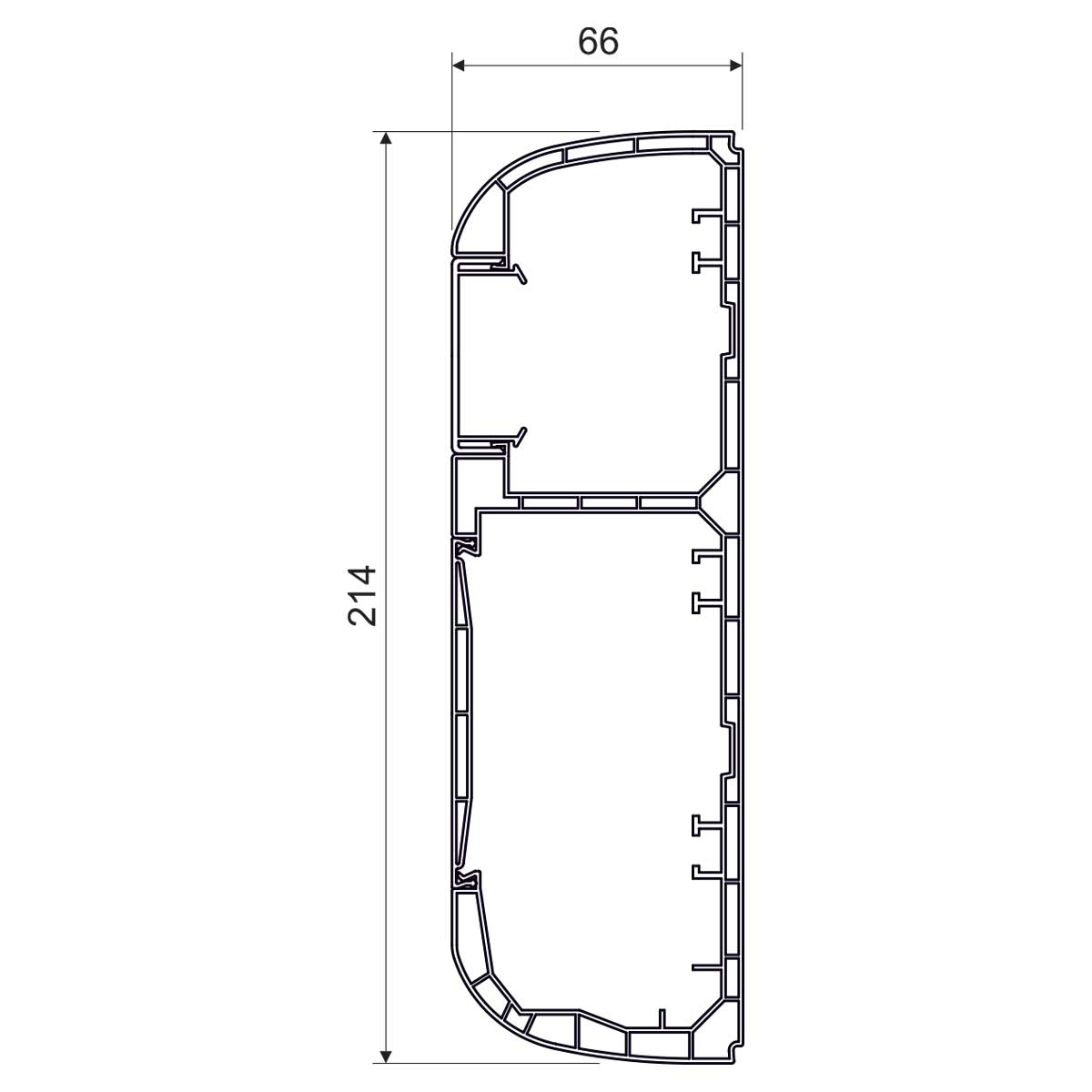

Breite214 mm
Höhe66 mm
Länge2 m
Innenfläche4400, 3100
Toleranz
The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C.
Nutzung
they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use.
Empfehlung des Herstellers
If the SK 40X33 (higher) shielding canal can be installed, it is not possible to use instruments with a larger installation depth, eg with an overvoltage protection device. The producer recommends checking the depth of a particular device before installation.
BrandklasseA1 - F
SchutzartIP 40
Der Norm entsprechendČSN EN 50 085-1
Verpackungsbescheibungpackage - cardboard

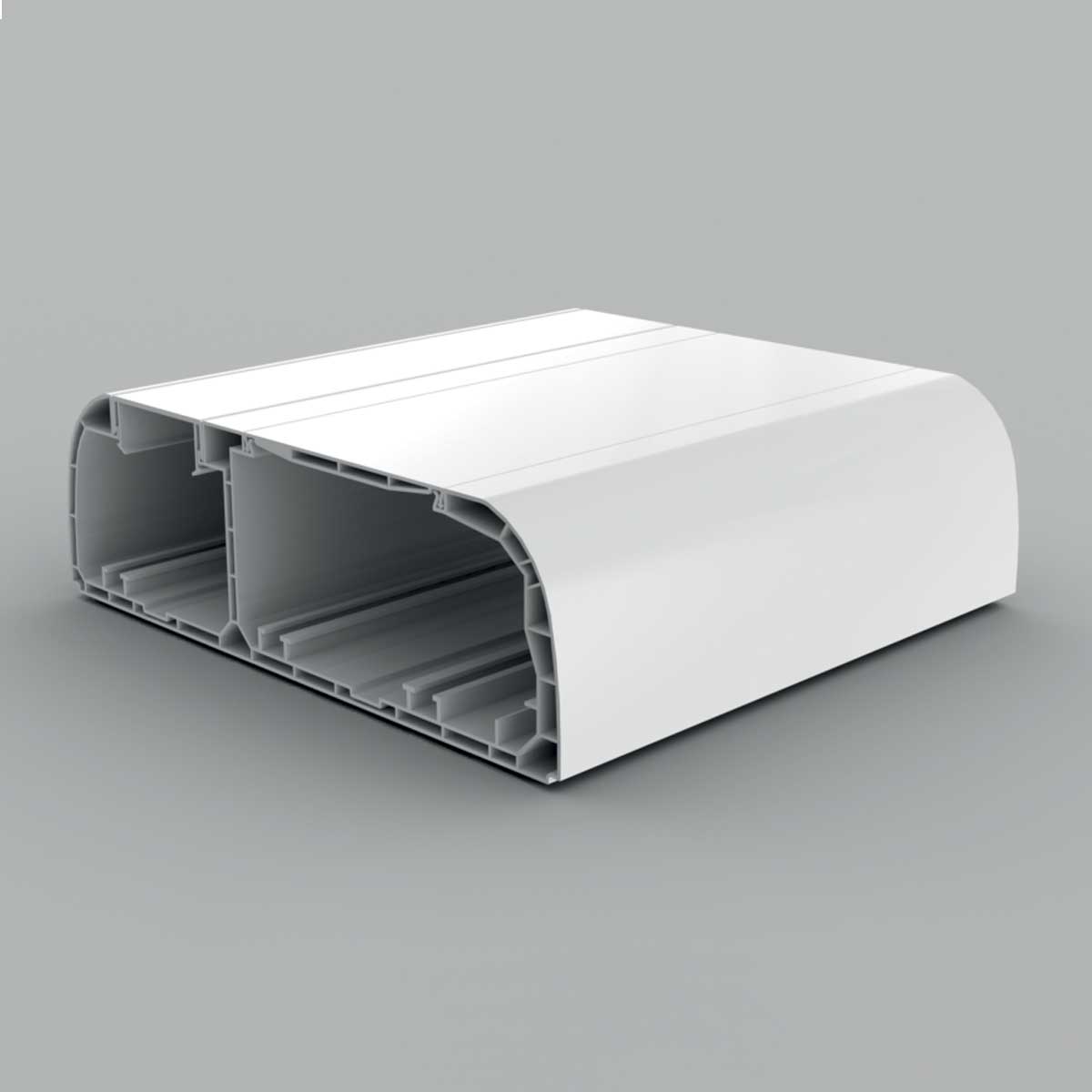

Designed for installation of standard and modular devices 45 x 45 or 45 x 22,5 mm. KOPOS recommends installing QUADRO instruments, tailor-made for KOPOS products. The installation of devices from other manufacturers is possible with maximal instrument depth 54mm. Its design allows inserting shielding canals SK 40X ... (to both chambers), all kinds of partition walls, including metal ones, which serve as a shield, providing a great fixation of cables in the desired position. KP PK instrument box with 8450 instrument washers are designed for mounting standard instruments and allow the installation of combined frames. Maximum number of modular instruments placed next to each other is 3 pcs. When installing multiple instruments next to each, it is necessary to put about 5 cm wide piece of lid after 3 pieces to fasten them. There is no need to use instrument washers for the final installation of modular devices. The lid is cut to the desired length and inserted next to the instrument. Due to the above characteristics and cover integrity, this parapet trunking ranks among the products with the highest utility value offered by KOPOS KOLÍN a.s. in the area of parapet trunkings. This parapet channel was awarded with the Golden Amper diploma.
