EAN code8595057617315
Zolltarifnummer39259080
Gewichtung0.08 kg/pcs
Farbewhite
MaterialPVC
Selbstlöschend30 sec.
Nennspanung<= 400 V
Nennstrom<= 16 A
Temperaturbeständigkeit-5 - 60 °C
Flammwidrigkeit850 °C

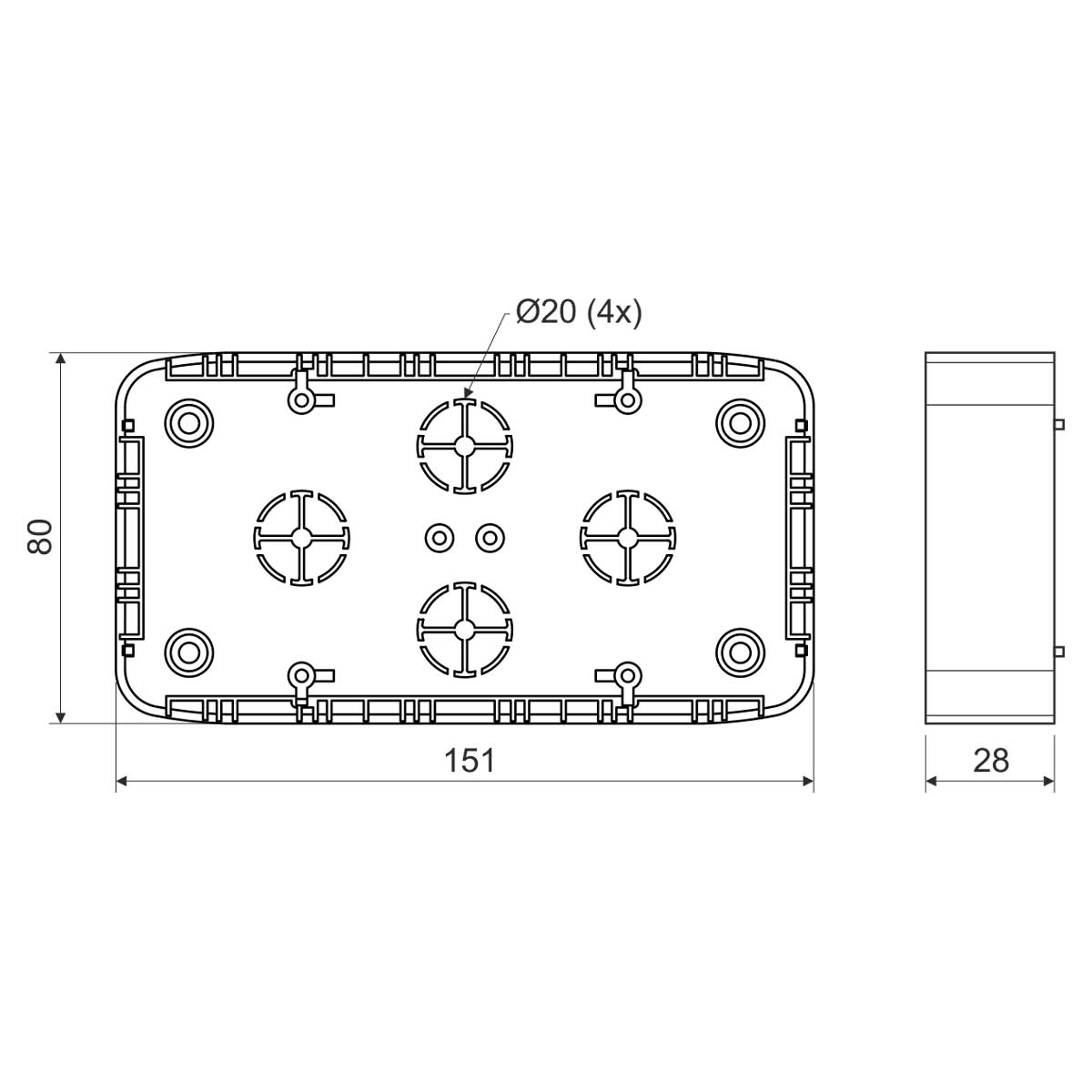

Breite151 mm
Höhe80 mm
Tiefe28 mm
BrandklasseA1 - D
Ausdehnung des untergelegten Materials bei Feuer
Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F
Abstand beim Verbinden von 2 Dosen71
Der Norm entsprechendČSN EN 60 670-1
Verpackungsbescheibung
the boxes are packed in a shrink foil of 10 pieces and the screws are enclosed for two instruments

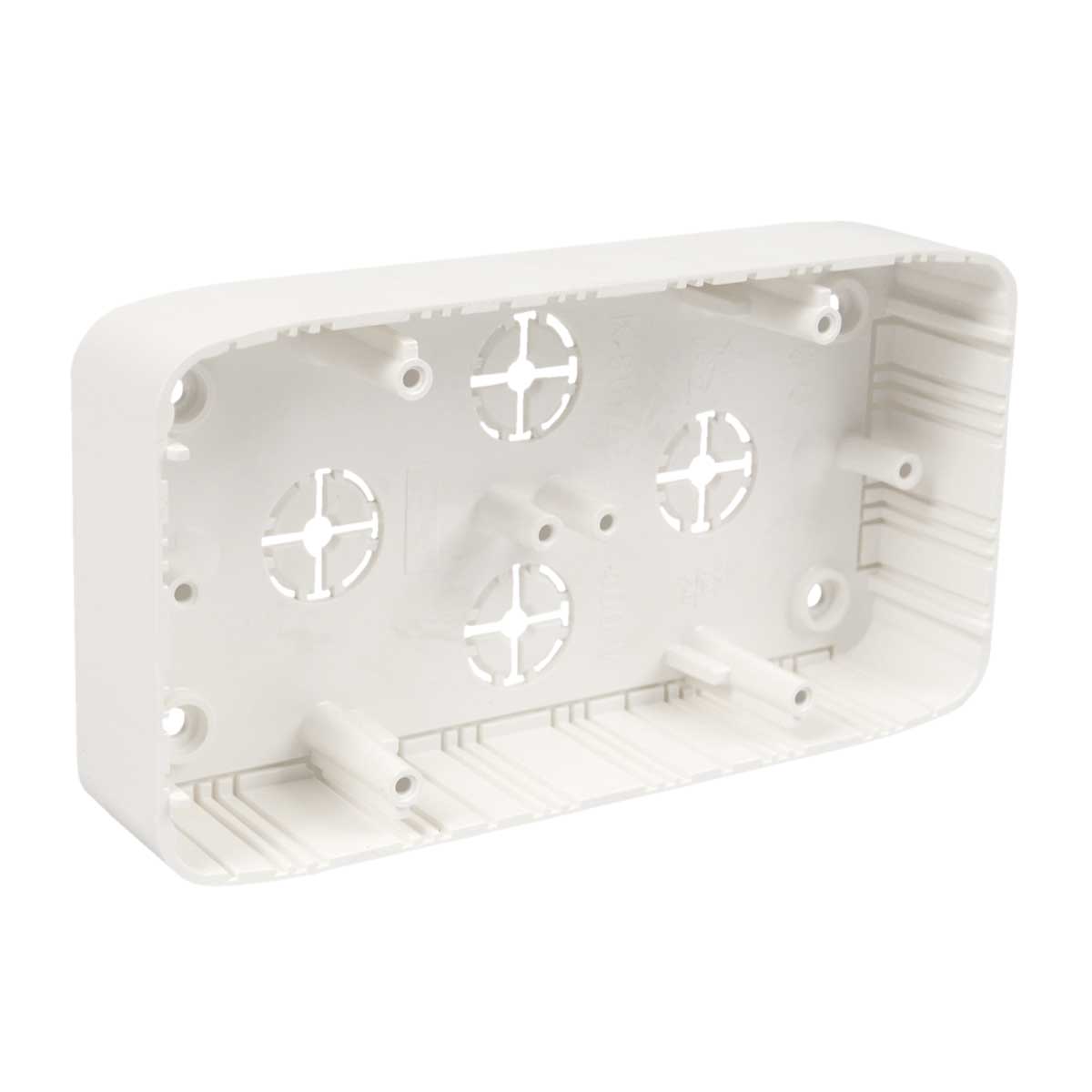

Intended for two devices of Tango - ABB series in and combined frame. For installation of two units horizontally. To install on materials with fire classes E or F, use insulating pad – to support, use 2 pads PI 80 2ZT and adjust to the desired size.
