EAN code8595057616394
Zolltarifnummer39259080
Gewichtung0.05 kg/pcs
Farbewhite
MaterialPVC
Selbstlöschend30 sec.
Nennspanung<= 400 V
Nennstrom<= 16 A
Temperaturbeständigkeit-5 - 60 °C
Flammwidrigkeit850 °C

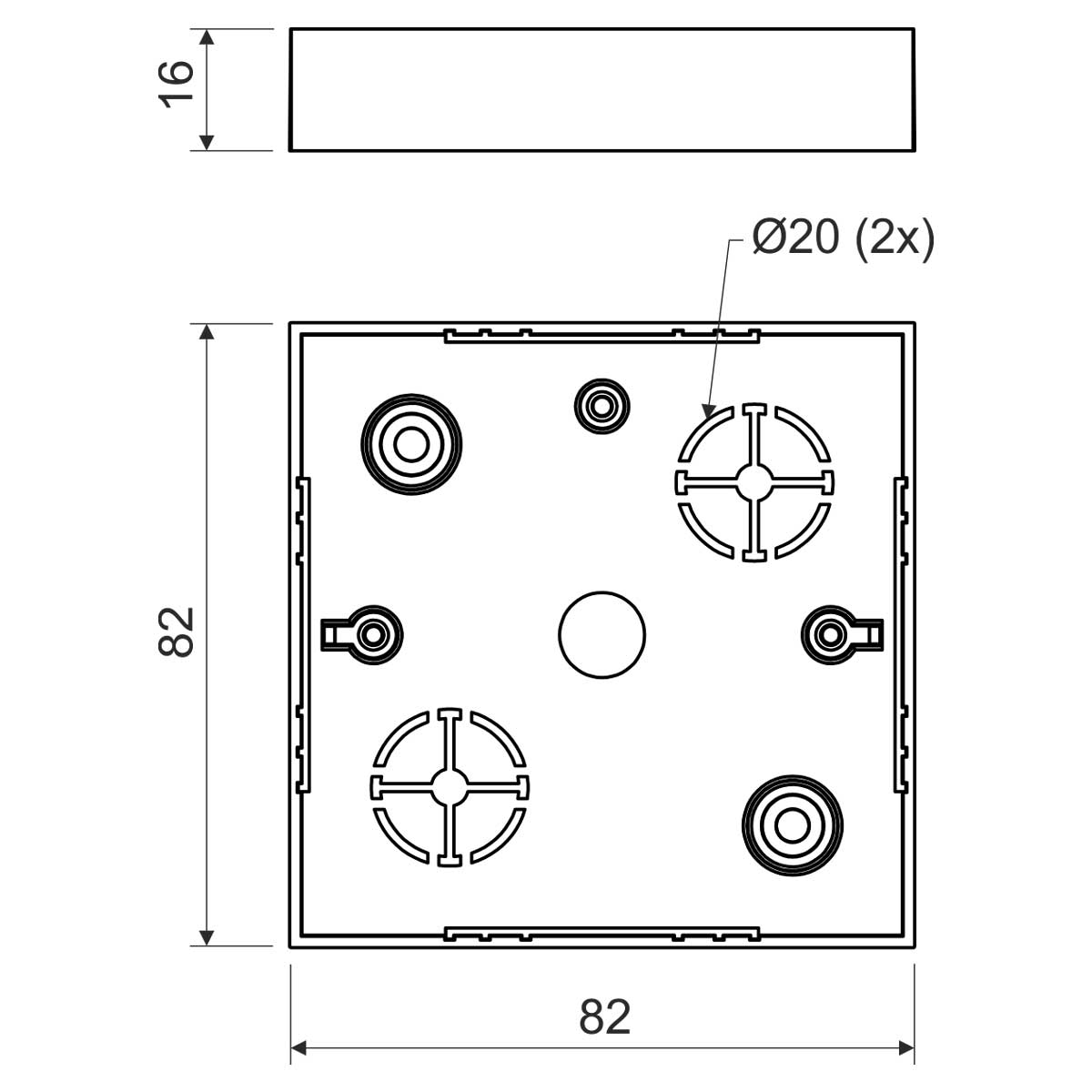

Breite82 mm
Höhe82 mm
Tiefe24,5 mm
BrandklasseA1 - D
Ausdehnung des untergelegten Materials bei Feuer
Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F
Der Norm entsprechendČSN EN 60 670-1
Verpackungsbescheibung
boxes are packed in a shrink foil of 10 pcs and enclosed with screws for fixing the lid, lids packed separately after 10 pcs

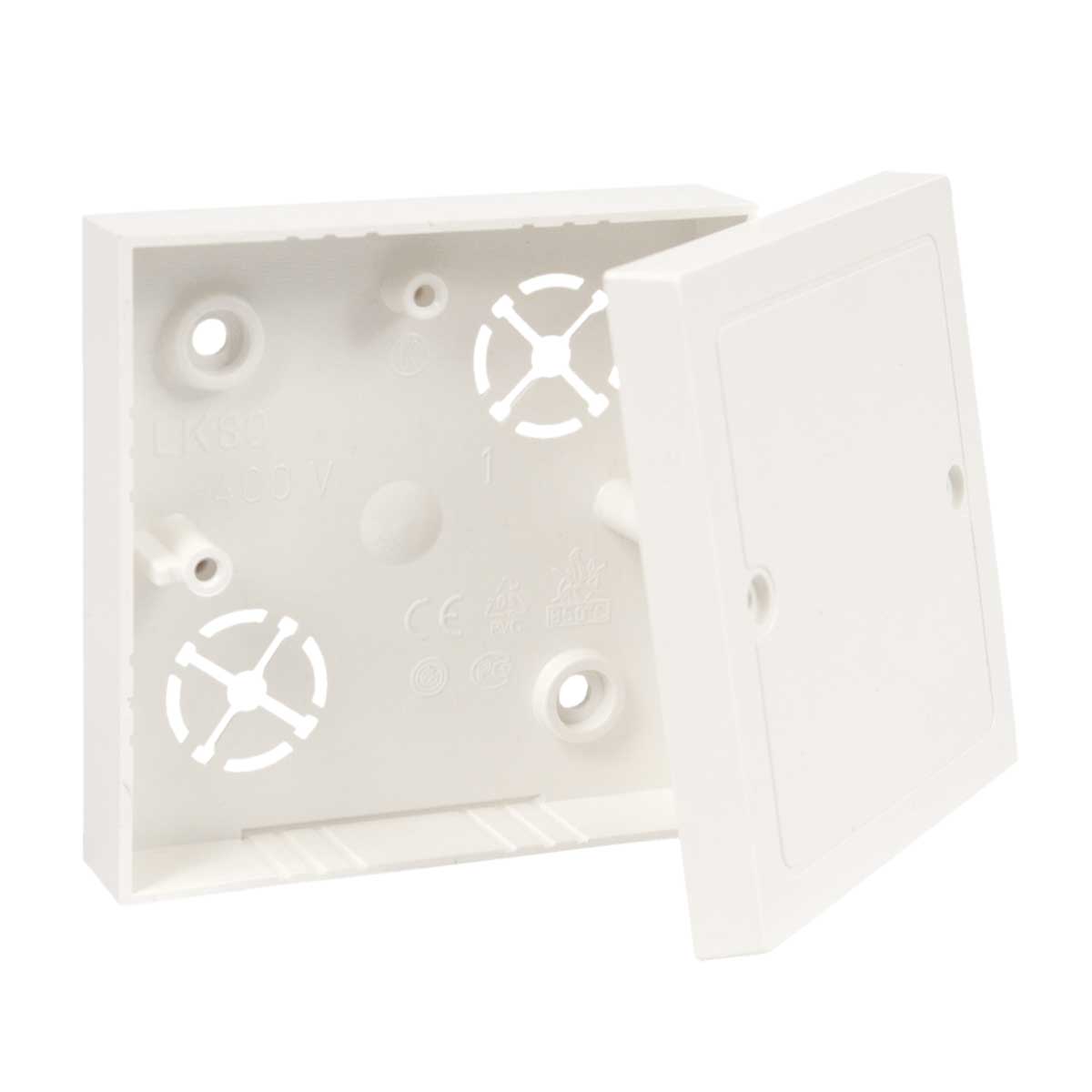

Its shape is also suitable for older devices. Inserting terminal plate S-66. To install on materials with fire classes E or F, use insulating pad. The lid can be purchased separately.
