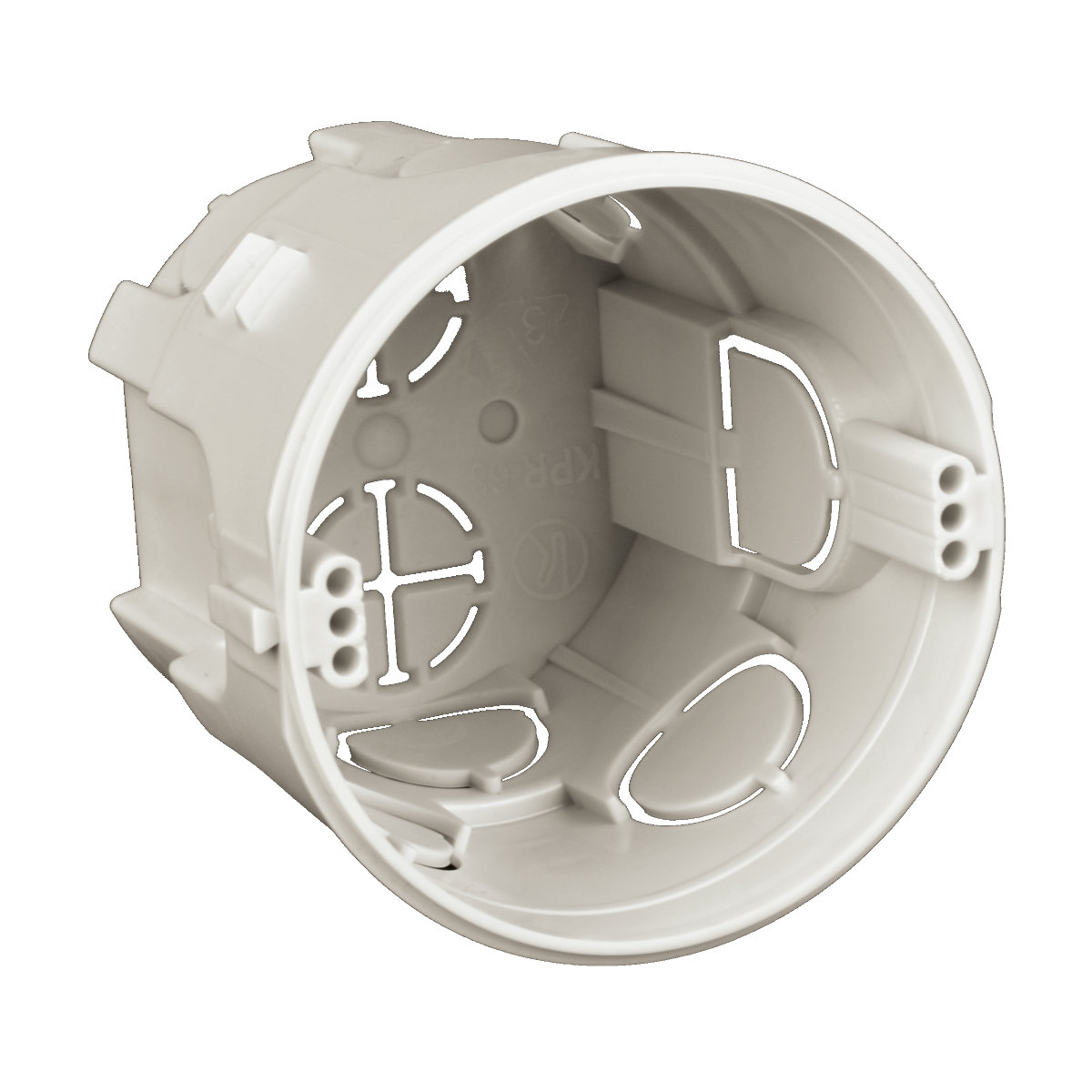

KPR 68 KA - krabice přístrojová
způsob montáže
To access download of 3D models login or register.
EAN code8595057648302
Zolltarifnummer85363030
Gewichtung0.05 kg/pcs
MaterialPVC
Selbstlöschend30 sec.
Nennspanung<= 400 V
Nennstrom<= 16 A
Temperaturbeständigkeit-5 - 60 °C
Flammwidrigkeit850 °C

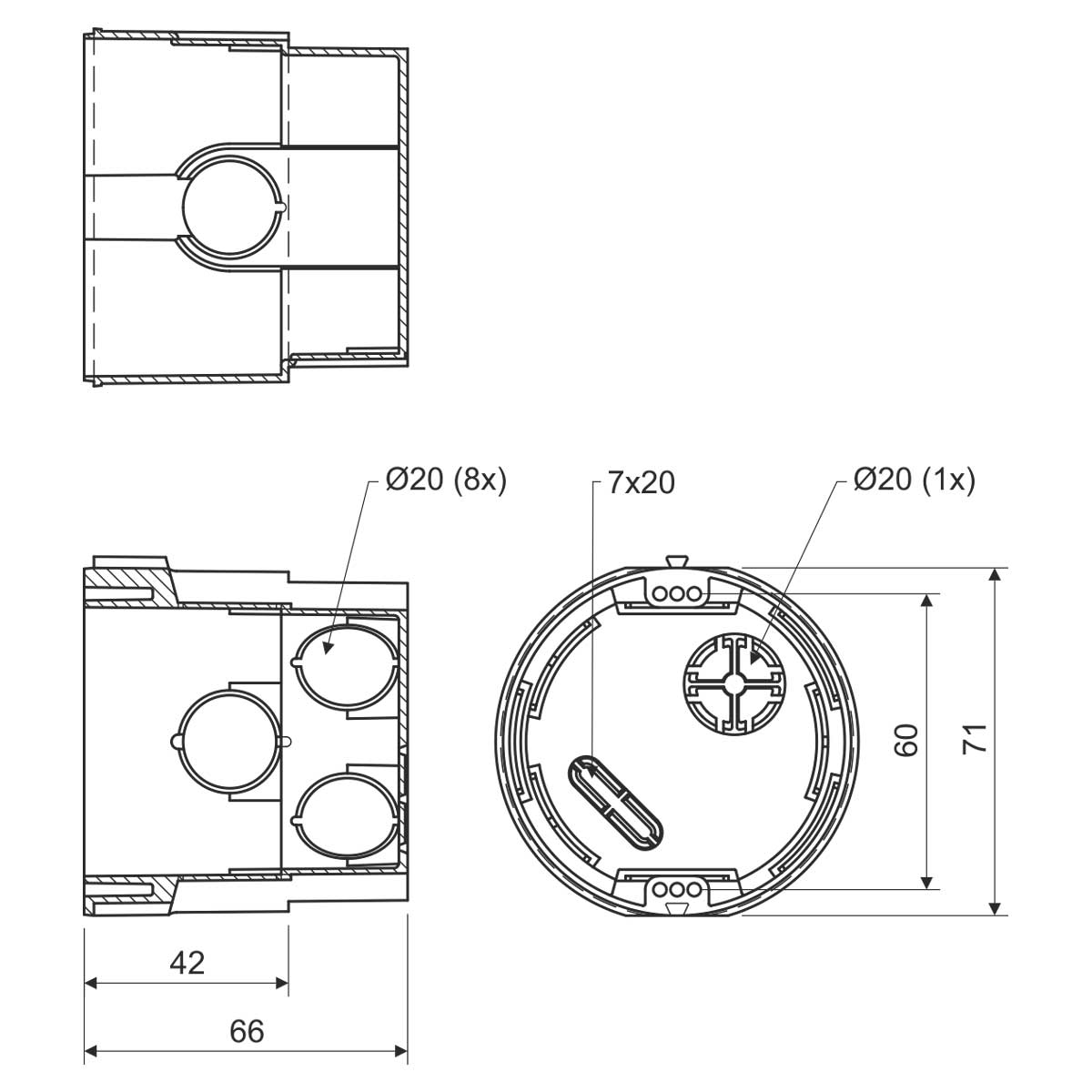

Durchmesser73 mm
Tiefe66 mm
Gefräst (gebohrter) Lochdurchmesser80 mm
BrandklasseA1 - D
Abstand beim Verbinden von 2 Dosen71
Montage einer Doppelsteckdose möglichyes
Der Norm entsprechendČSN EN 60 670-1
Verpackungsbescheibung
packed 10 pcs in a shrink foil, package straighten in cardboard

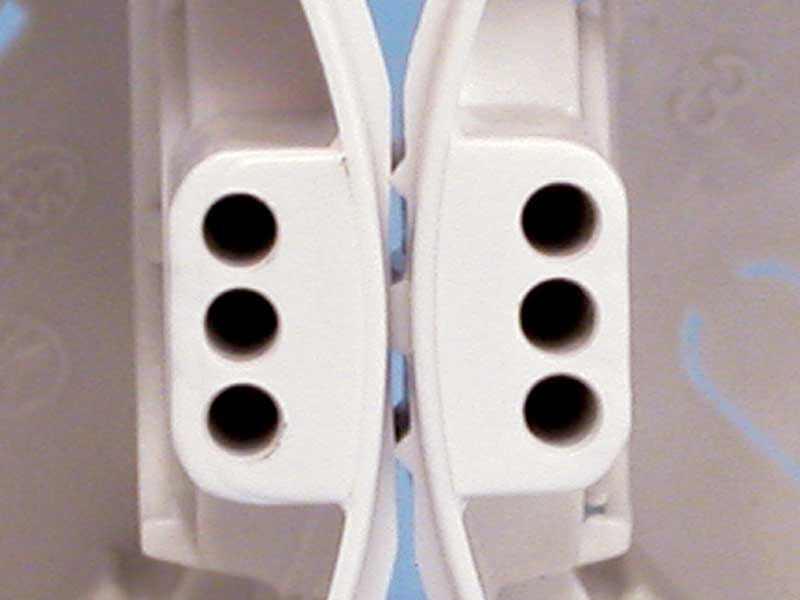

Easy installation of devices with big depth. Possibility to join into and continuous series with and spacing of 71 mm. Connection of up to three boxes in and row is recommended. Possibility to easily clamp under the device using screwless terminals. Boxes can be joined with boxes KU 68-1901, KP 68/2 and KP 68. Sold in the smallest complete packages (10 pcs).
