EAN code8595057604186
Zolltarifnummer85381000
Gewichtung0.61 kg/pcs
MaterialAl
Temperaturbeständigkeit-25 - 70 °C
Mechanische SchutzgradIK10
Breite96 mm
Höhe96 mm
Tiefe64 mm
Durchmesser der Befestigungsbohrung6 mm
BrandklasseA1 - D
Ausdehnung des untergelegten Materials bei Feuer
Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1
SchutzartIP 54
Verpackungsbescheibungthe glands for threaded pipes P16

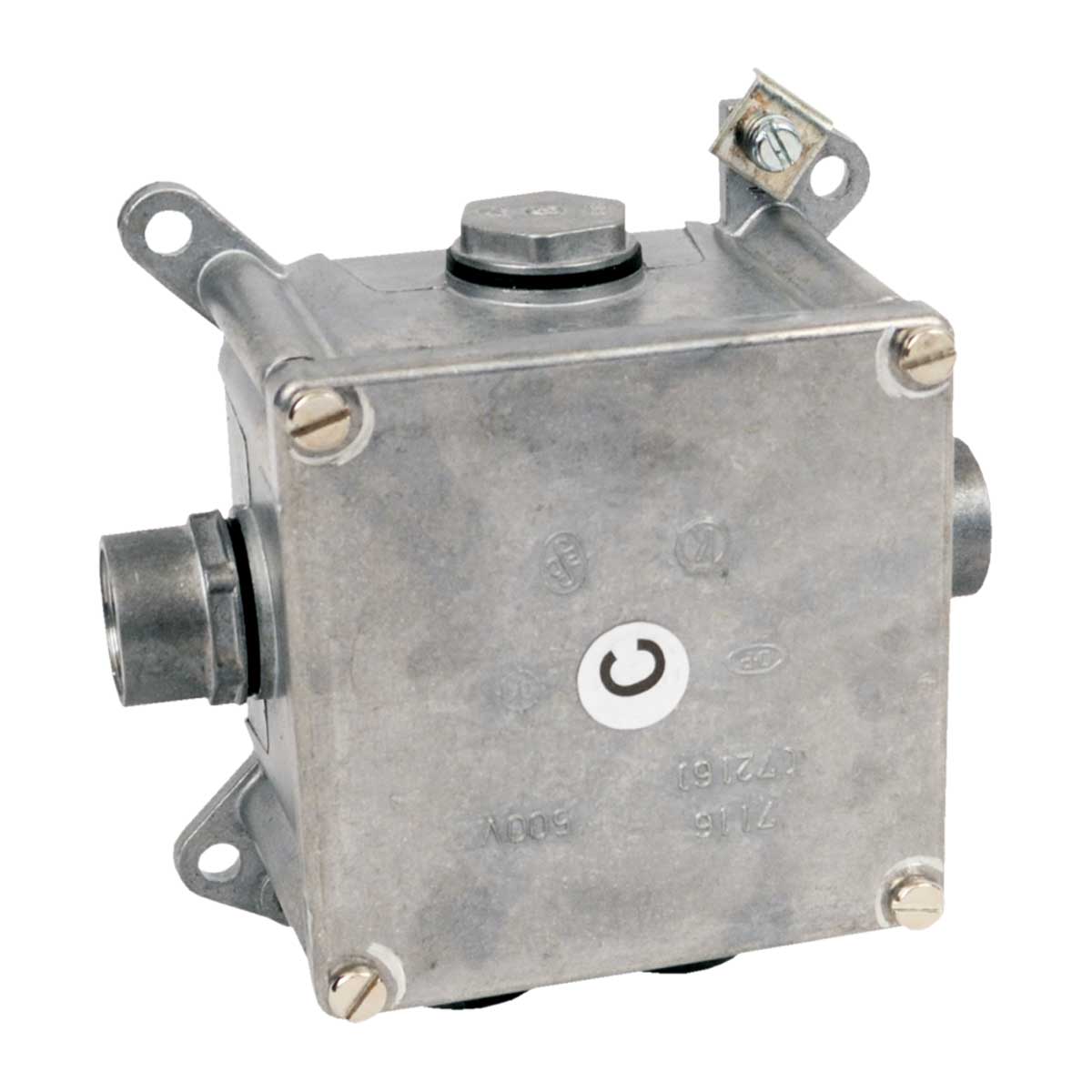

Boxes for piping with steel threaded or metal flexible pipes. Three glands and one plug evenly distributed on the sides of the box. Terminal plate is not included in the box.7216 B: without protective terminal for installation in TNC networks.
