EAN code8595057608818
Zolltarifnummer85363030
Gewichtung0.20 kg/pcs
Farbedark grey
MaterialPVC
Selbstlöschend30 sec.
Nennspanung<= 400 V
Nennstrom<= 16 A
Temperaturbeständigkeit-5 - 60 °C
Flammwidrigkeit650 °C

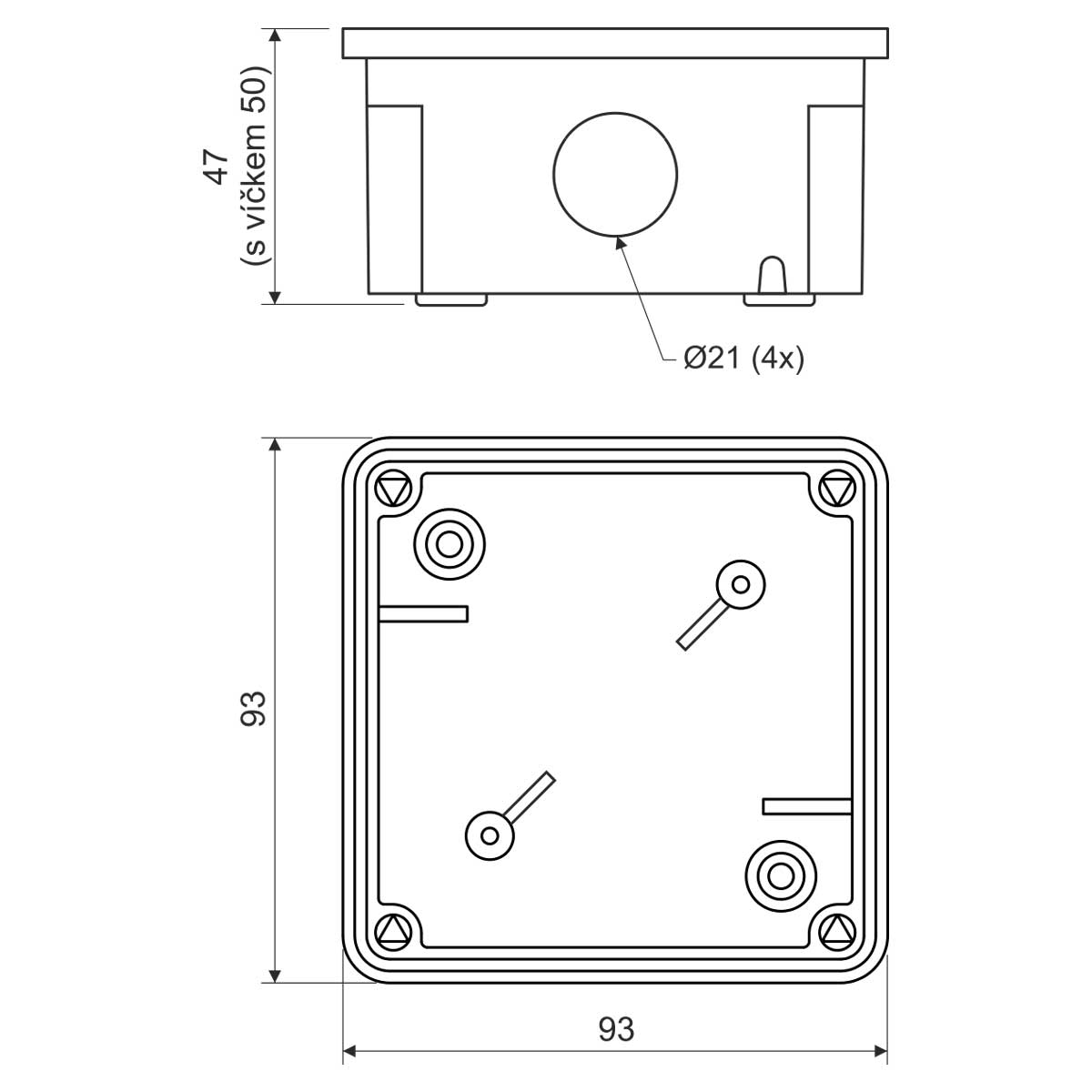

Breite95 mm
Höhe95 mm
Tiefe50 mm
BrandklasseA1 - D
Ausdehnung des untergelegten Materials bei Feuer
Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1 - F
SchutzartIP 54
Der Norm entsprechendČSN EN 60 670-1
Verpackungsbescheibung

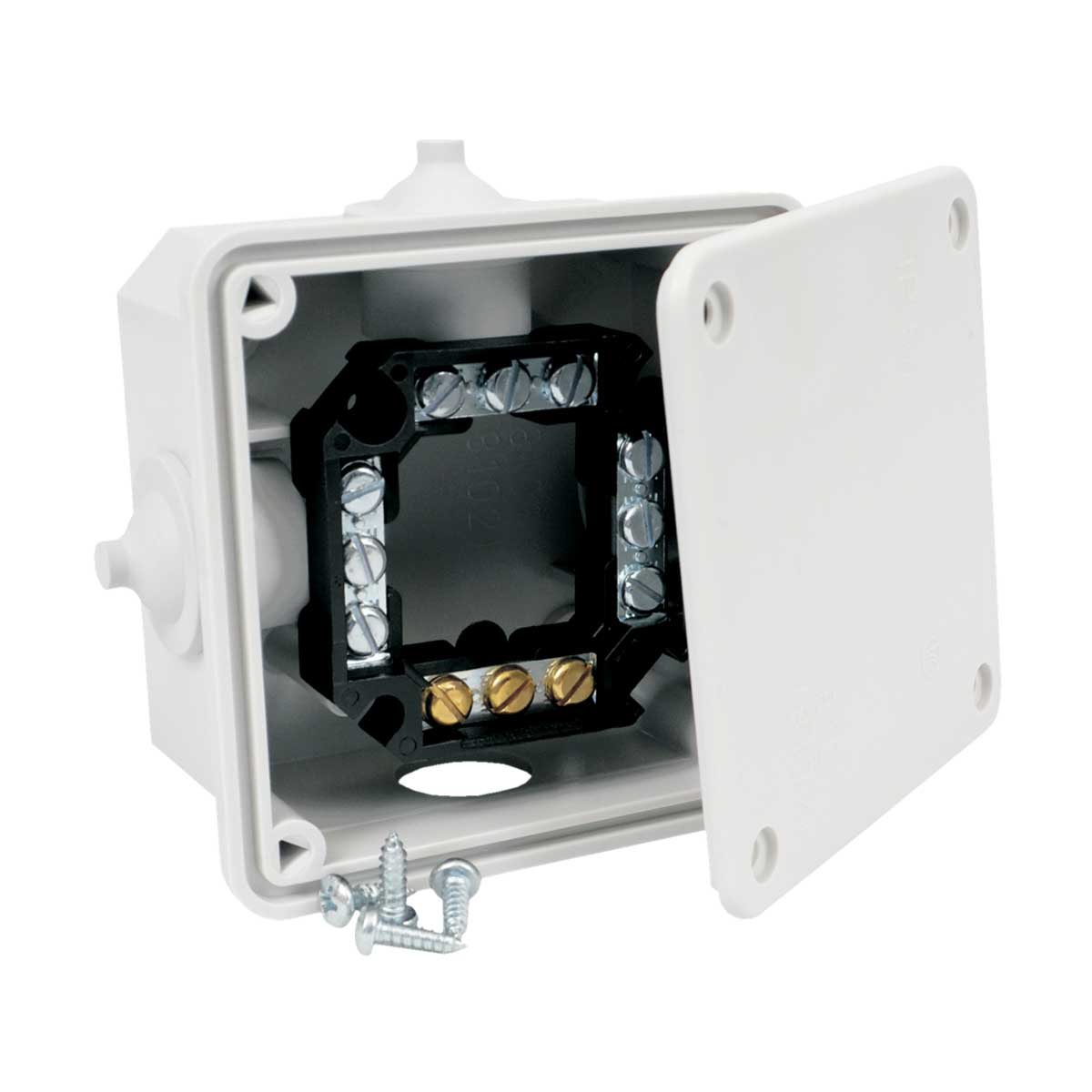

the grommets, terminal plates, screws for mounting lid and terminal plates inserted in the box, each box is packed in a shrink foil and labeled

For installation in environment with increased humidity, dust, chemical and corrosion resistance in environments with increased risk of mechanical damage. Universal grommets for cables and pipes, grommets can be ordered separately. To install on materials with fire classes E or F, use thermally insulating pad.
