EAN code8595568942227
Zolltarifnummer85369010
Gewicht0,7641 kg/Stck
Flammwidrigkeit650 °C
Mechanischer SchutzgradIK07
Breite126 mm
Höhe126 mm
Tiefe48 mm
FunktionserhaltP90-R, E90, PS90
SchutzartIP40
Standards für FeuerbeständigkeitČSN 73 0895, DIN 4102-12, STN 92 0205

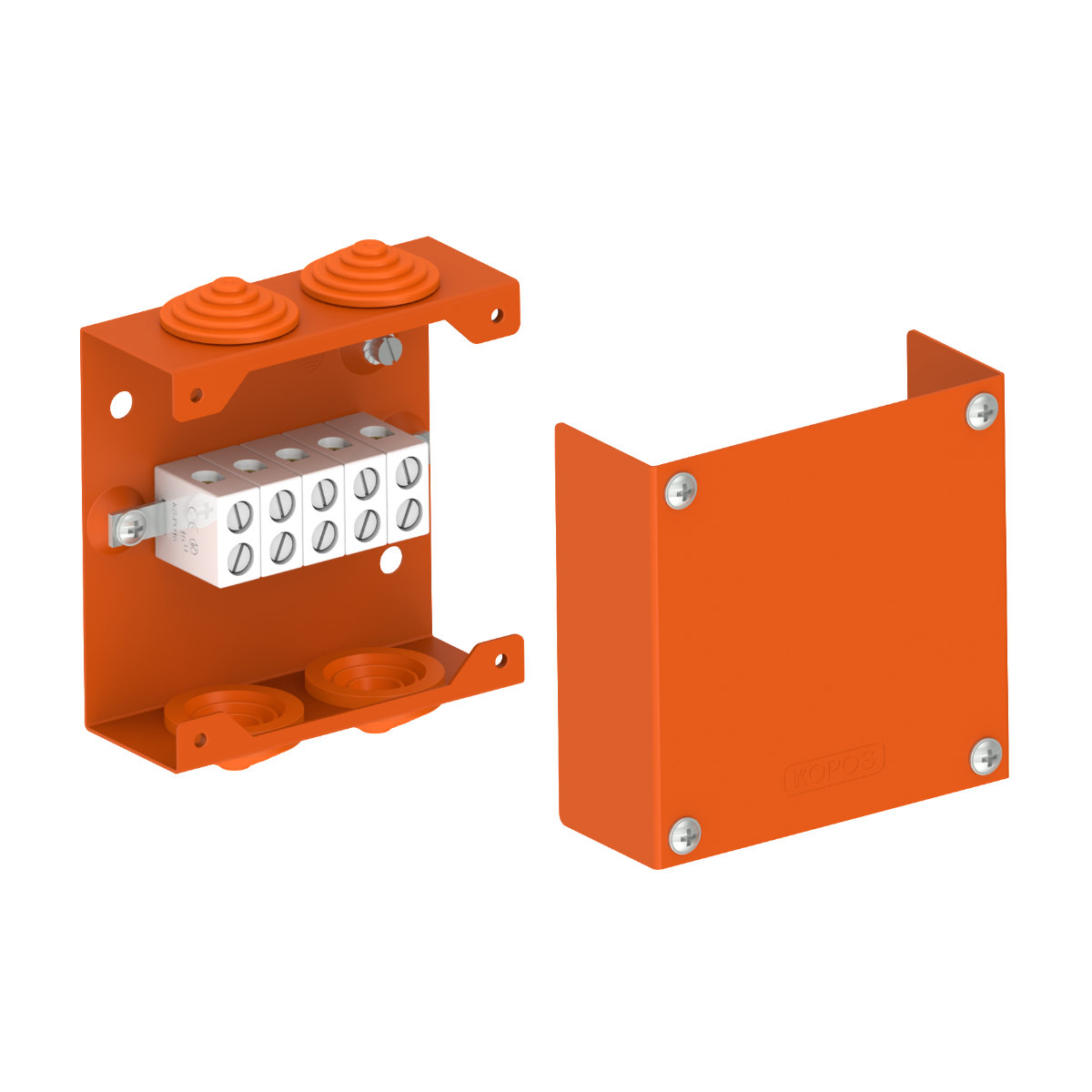

These are metal boxes with ceramic terminals for conductors with functional integrity. Use in special applications such as protected and unprotected escape routes. The boxes are designed for use with power cables. Fire-resistant boxes are made from galvanized sheet metal, which is then coated with a polyester UV-resistant paint. The cable entry passages are made from soft plastic material, allowing easy cable insertion into the box. The boxes are mounted by using the included screws for concrete (SB 3.5x45, included in the package).
