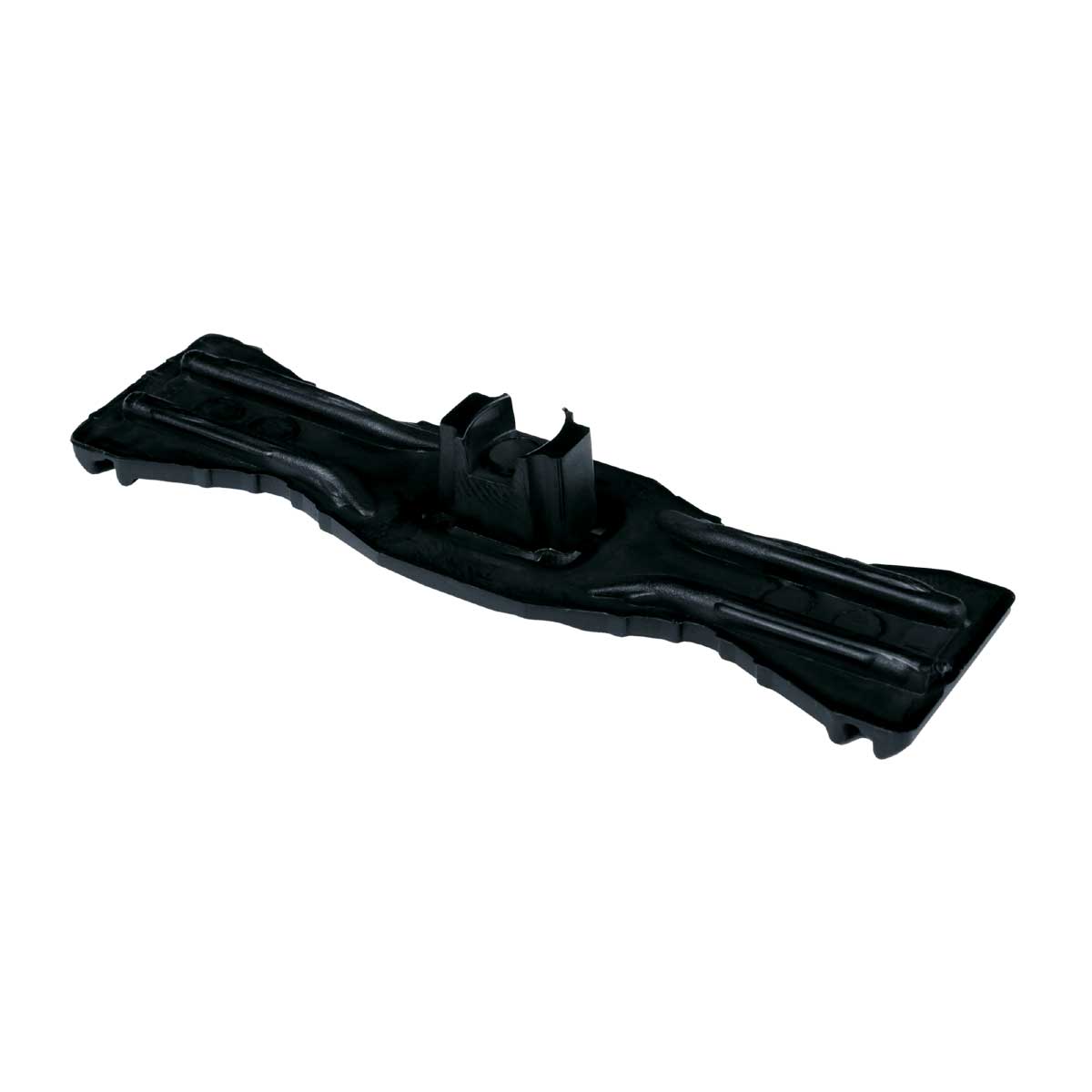

illustrative picture
6723 FA - příchytka řadová
způsob montáže
Certifikace
EAN code8595057606227
Zolltarifnummer39174000
MaterialPA
Halogenfreies Materialyes
Temperaturbeständigkeit-30 - 80 °C
Breite15 mm
Höhe11,5 mm
Länge70 mm
Leiterdurchmesser10 - 26 mm
Empfehlung des Herstellers
The clamps should be installed immediately after unpacking from the sealed bag.

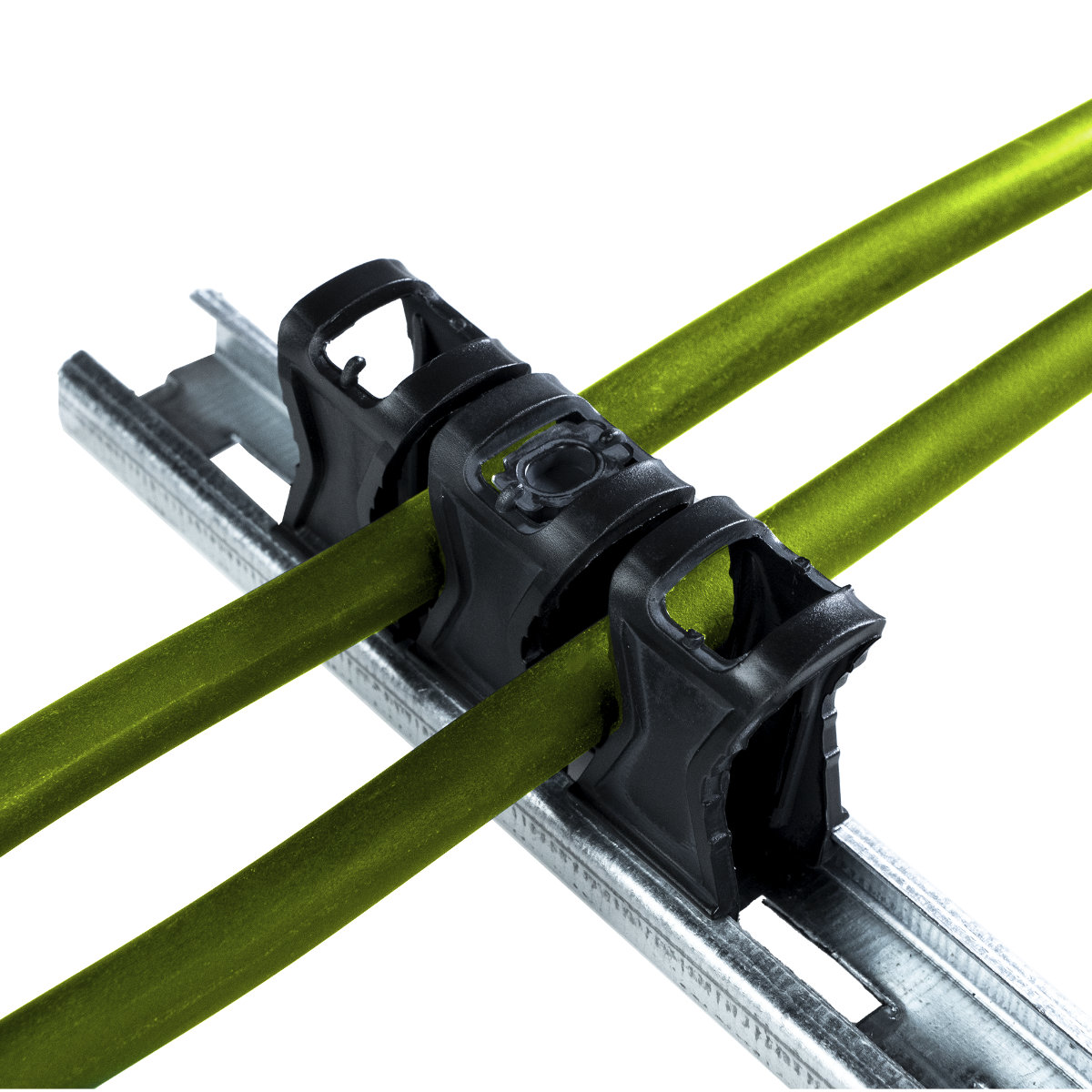

To fix the protected conductors with ?10-26 mm side by side on the support trunking 5820 or 5822. Installation is done by bending the clips into a U-shape and inserting into the support trunking. Is secured against displacement with a wedge, which is pre-moulded on the clip.
