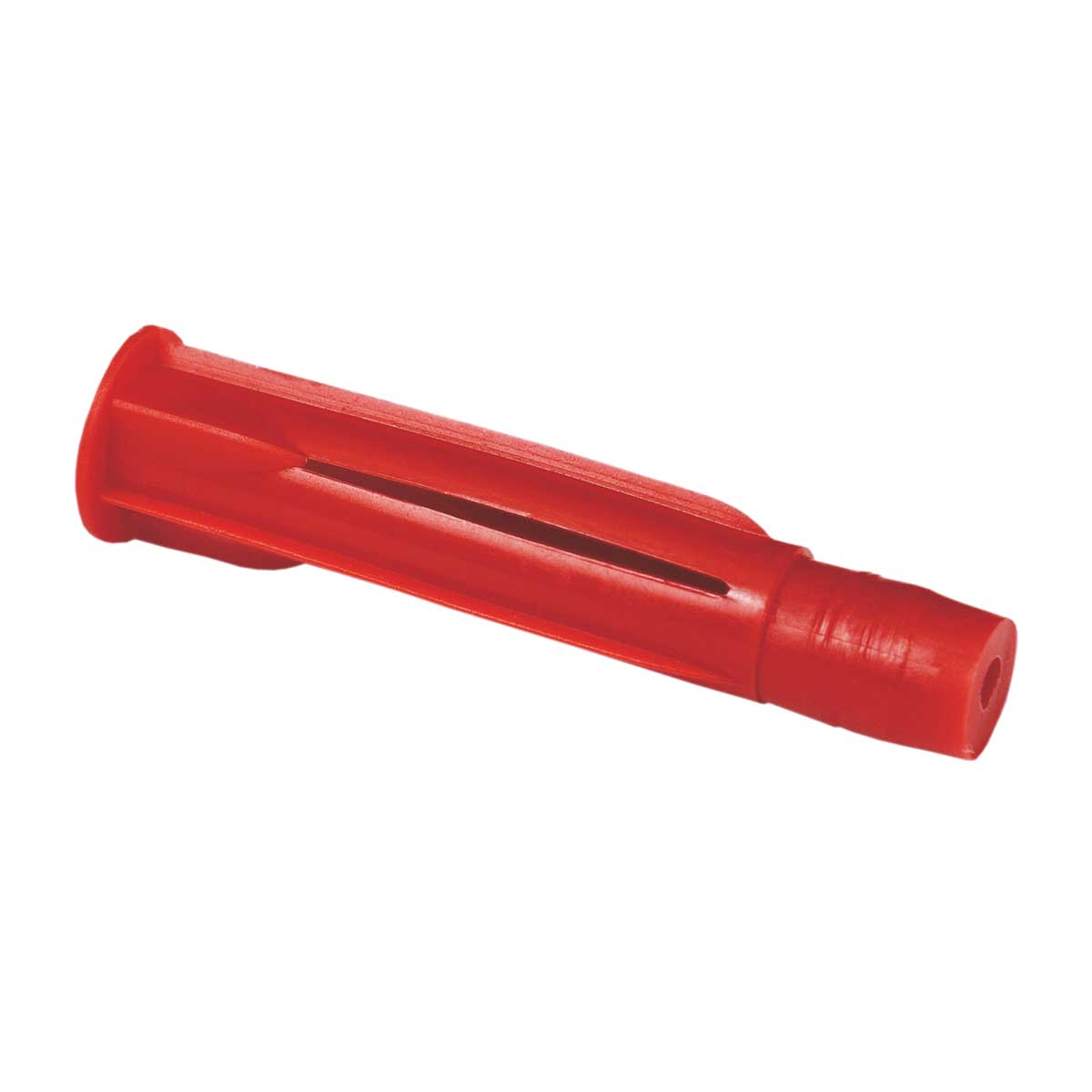

illustrative picture
HL 10 XX - hmoždinka
Datový list
Certifikace
EAN code8595057612273
Zolltarifnummer39259080
MaterialPE
Halogenfreies Materialyes
Temperaturbeständigkeit-30 - 70 °C
Axiale Zugkraft
soft material = 300 N gas-cilicate = 130 N palsterboard = 450 N
Länge59 mm
Außendurchmesser10 mm
Schraubendurchmesser5 - 6 mm
Tiefe der Bohrung65 mm

For fixed mounting of wiring and other elements into hollow walls and ceilings. For connection, use a screw fitted to full length of the wall plug; it is also necessary to allow for the thickness of material to be fastened. For more information, see installation instructions.
