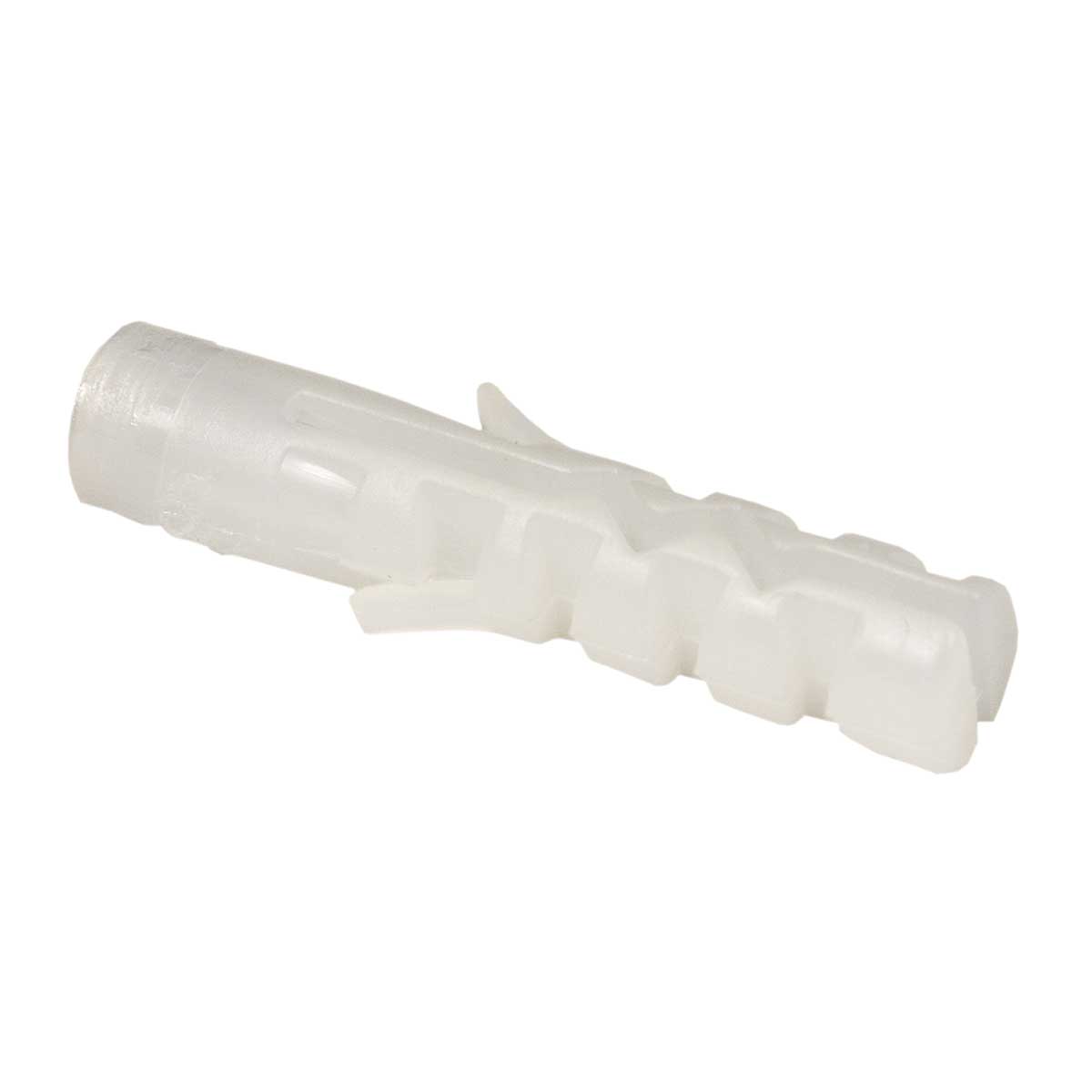

illustrative picture
HM 10 XX - hmoždinka
To access download of 3D models login or register.
Datový list
EAN code8595057605176
Halogenfreies Materialyes
Temperaturbeständigkeit-30 - 80 °C
Axiale Zugkraft
concrete 20/25 = 1200 N brick = 750 N soft material = 580 N gas-cilicate = 300 N
Länge50 mm
Außendurchmesser10 mm
Schraubendurchmesser5 - 6 mm
Empfehlung des Herstellers
dowels should be installed immediately after unpacking from a sealed bag. This will avoid unnecessary lowering of the PA moisture level, which would result in a reduction in the quality of the dowel
Tiefe der Bohrung55 mm

For fixed mounting of wiring and other elements into hollow walls and ceilings. For connection, use a screw fitted to full length of the wall plug; it is also necessary to allow for the thickness of material to be fastened. For more information, see installation instructions.
