EAN code8595057618718
Gewichtung0.64 kg/m
ZN: after steel welding hot-dip galvanized using immersion, zinc layer min. 35 micrometers, high corrosion resistance - Group 4
Temperaturbeständigkeit-60 - 250 °C
Mechanische Festigkeit1250 N/5cm
Mechanische SchutzgradIK10
Länge3 m
Außendurchmesser20,4 mm
Innendurchmesser (min.)18,2 mm
FunktionserhaltP90-R, E90, PS90
Der Norm entsprechendČSN EN 61386-1 ed.2
Standards für FeuerbeständigkeitČSN 73 0895, DIN 4102-12, STN 92 0205
Max. Last für Feuerbeständigkeit10 kg

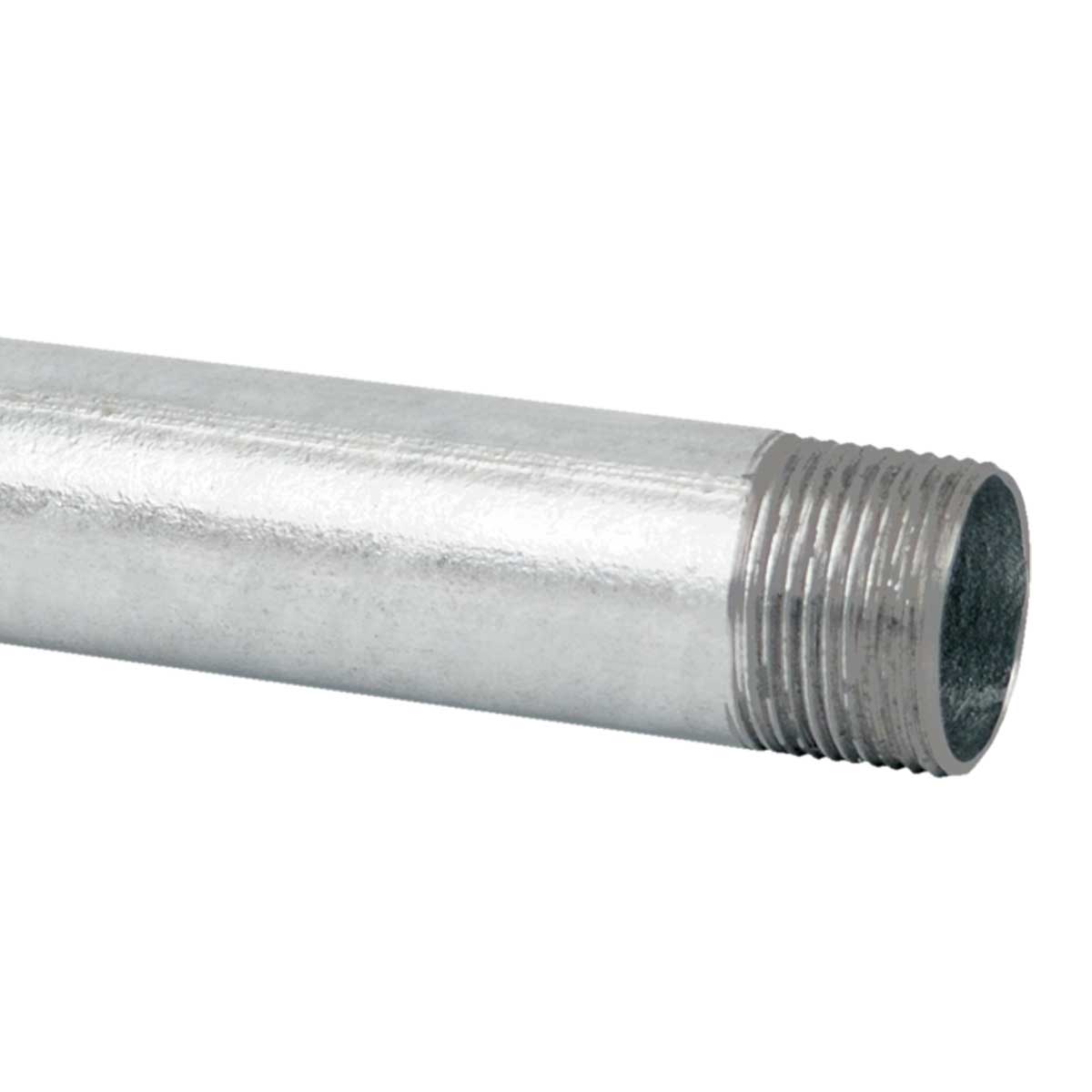

The pipes are suitable for mechanical protection of conductors and cables. Threaded conduits are supplied with one coupler. While using pipes along with bushing 4813/P - 4842/P and 4913 - 4942 is scope of application only -5 - +60 °C.

Note for system with maintained functionality in fire:
max. 1 piece of cable in the pipe
You find more information in the catalogue Systems with maintained functionality in fire.
