EAN code8595057655409
Zolltarifnummer39173300
Gewichtung0.44 kg/m
Farbeorange
MaterialHDPE
Halogenfreies Materialyes
Temperaturbeständigkeit-5 - 50 °C
Mechanische Festigkeit750 N/5cm
StoßfestigkeitN (normal, according to ČSN EN 61 386-24)
Biegfestigkeitflexible
Außendurchmesser40 mm
Innendurchmesser33 mm
Toleranzlength ± 2 mm/m
Mindestbiegradius400 mm
Empfehlung des Herstellers
The producer recommends the installation of plastic pipes at temperatures above 0 ° C.
Bemerkung
Protectors are tested at a pressure of 1.5 MPa for 1 hour
BrandklasseA1
Verpackungsbescheibung
Harness. Packaging on wooden drums and pallets for unwinding drums isdeliverd just upon previous order according to the customer specifications.
Im Lagerstandard

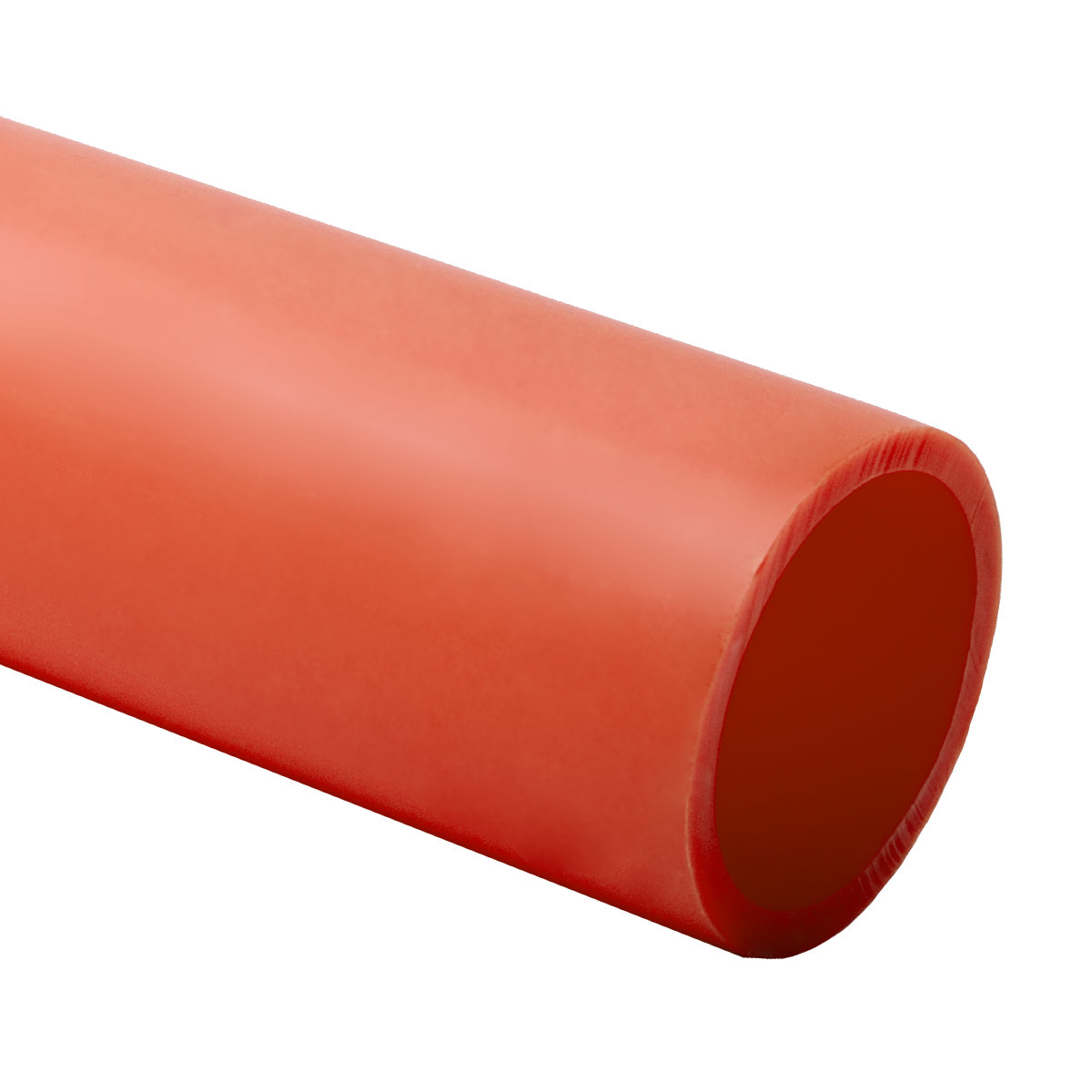

Single-coated pipes designed to protect optical cables. Cable protectors there is possible to deliver with inner wall to be lubrificated by mineral oil. For larger volumes different color versions (beyond presented versions), labeling, number of differential stripes, denticular inner surface or inner diameter size (material thickness) can be ordered based on customer needs and specifications.
