EAN code8595057600119
Zolltarifnummer85363030
Gewichtung0.09 kg/pcs
MaterialPVC
Bleifreies Materialyes
Selbstlöschend30 sec.
Nennspanung<= 400 V
Nennstrom<= 16 A
Temperaturbeständigkeit-5 - 60 °C
Flammwidrigkeit850 °C

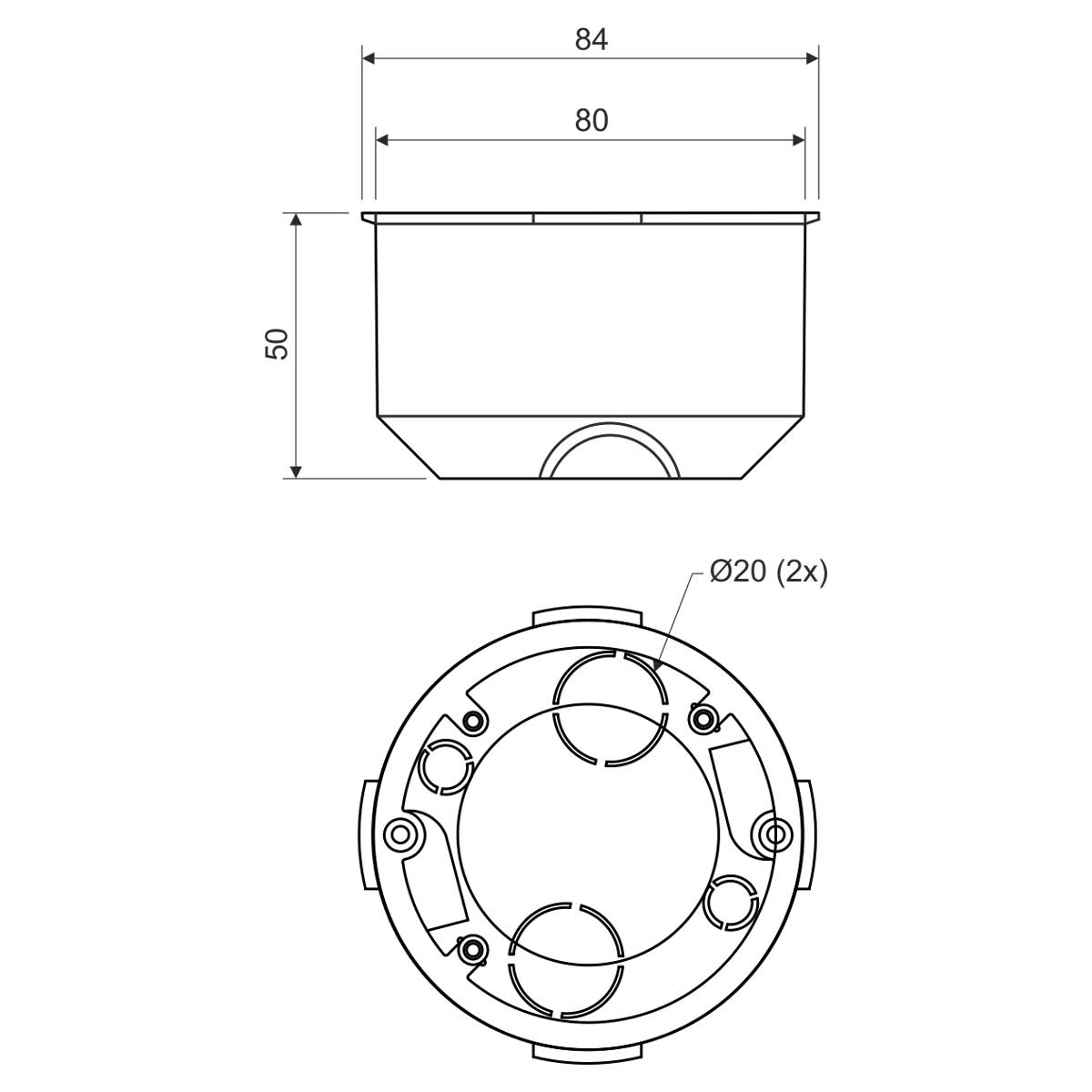

Durchmesser80 mm
Tiefe50 mm
Gefräst (gebohrter) Lochdurchmesser79,5 mm
Empfehlung des Herstellers
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
BrandklasseA - C3
Montage einer Doppelsteckdose möglichyes
Der Norm entsprechendČSN EN 60 670-1
Verpackungsbescheibung
individual boxes fitted with screws for installation in plasterboard

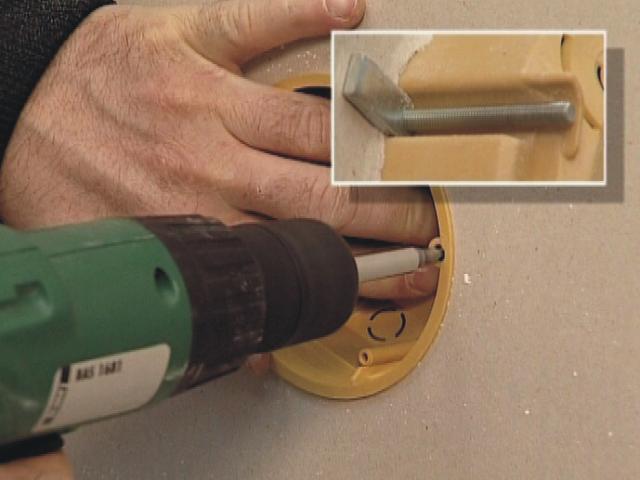

According to the formerly valid standard ČSN 73 0862 the box complies with materials of fire classes A - C3. Special added outer sheat. Mounting screws are fitted with a triple thread for quick installation.
