INOXKL110_EN
| EAN code | 8595568934130 |
| Zolltarifnummer | 73089059 |
| Gewicht | 3.50 kg/m |
| Oberflächenbearbeitung | Edelstahl AISI 304 |
| Temperaturbeständigkeit | -50 - 150 °C |
| Breite | 400 mm |
| Höhe | 110 mm |
| Länge | 2100 mm |
| Entsprechend der Norm | ČSN EN 61537 |
| Blechstärke | 1,2 mm |
| Sprossenabstand | 300 mm |

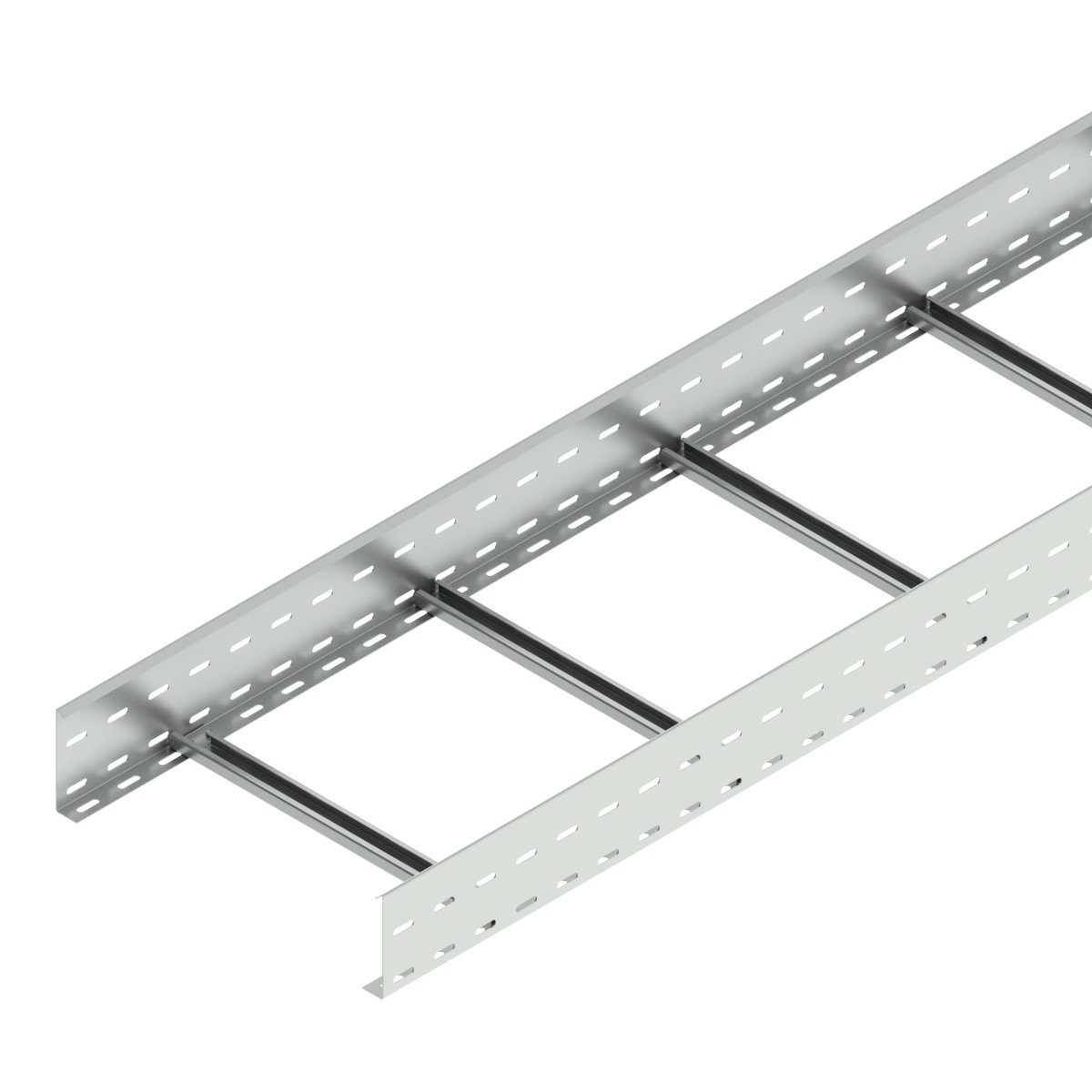

The joining of the ladders is performed by using the couplings INOXS 110 and min. 8 pcs of bolts NIXSM 6X10. The side walls are L-profiles with return flange. The perforated C-profile rungs are placed in the side walls by extrusion with a spacing of 300 mm, with open side of the profile facing up.
