EAN code8595568932549
Zolltarifnummer73269098
Gewicht0.96 kg/pcs
OberflächenbearbeitungTauchfeuerverzinkung
Blechstärke5 mm

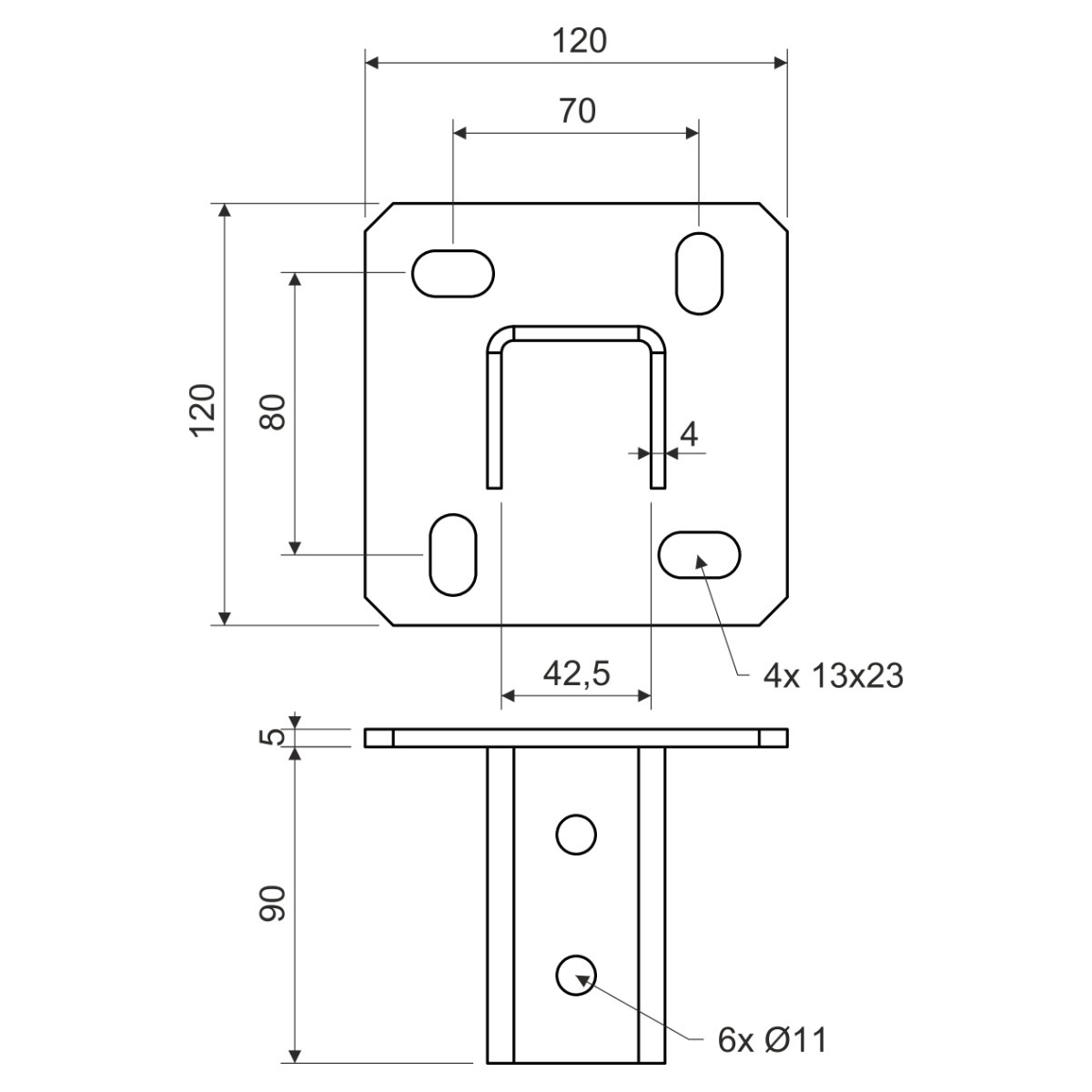

Maß A120 mm

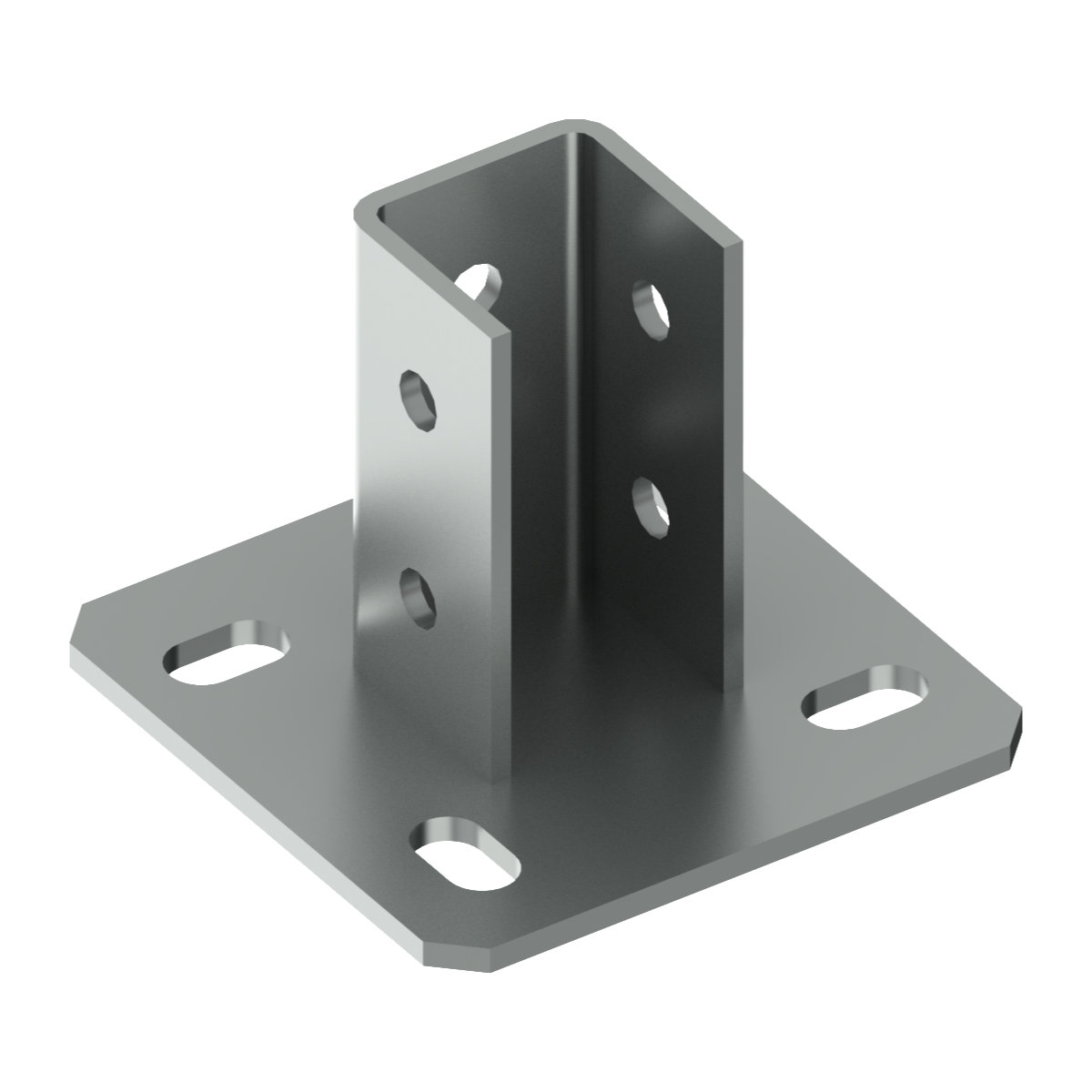

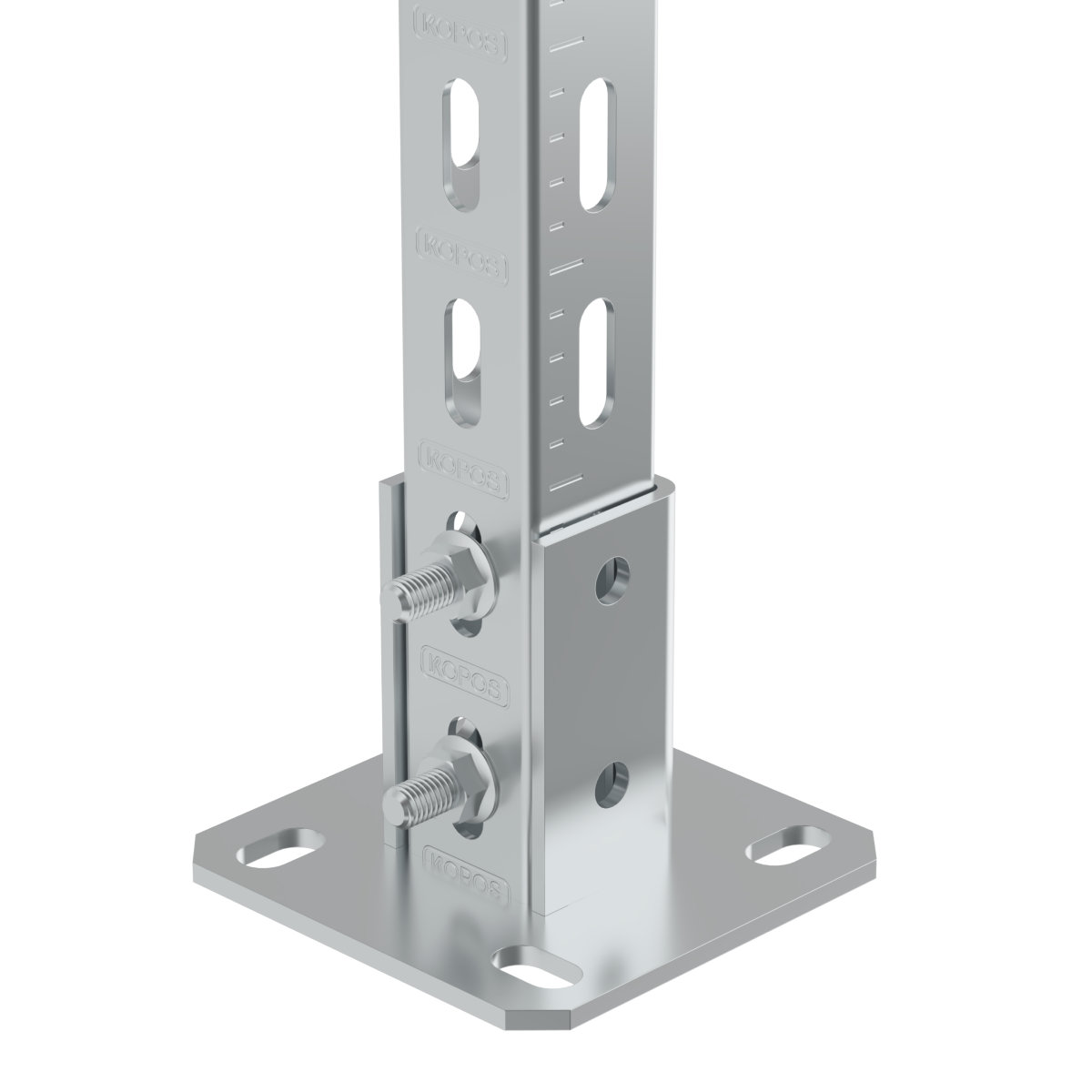

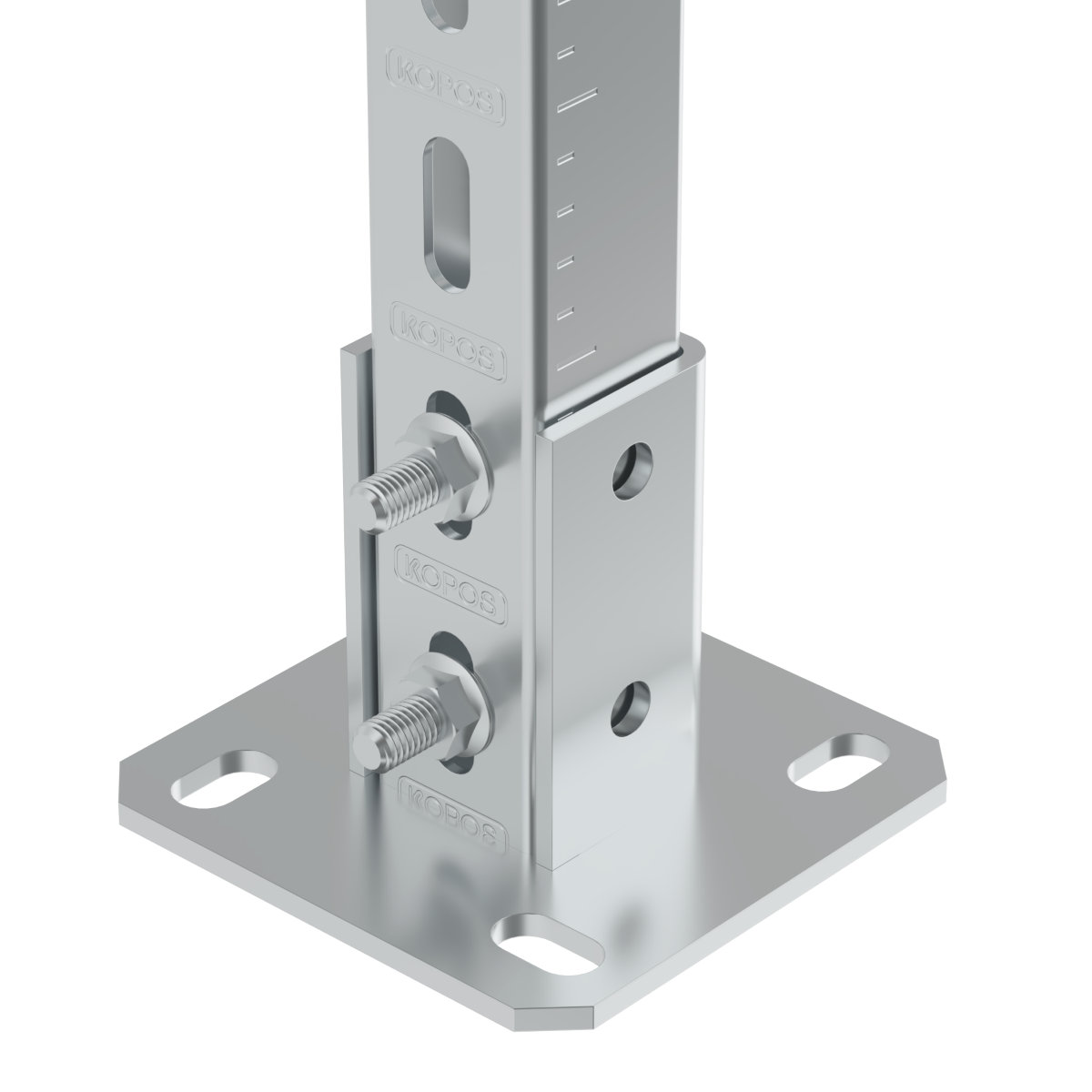

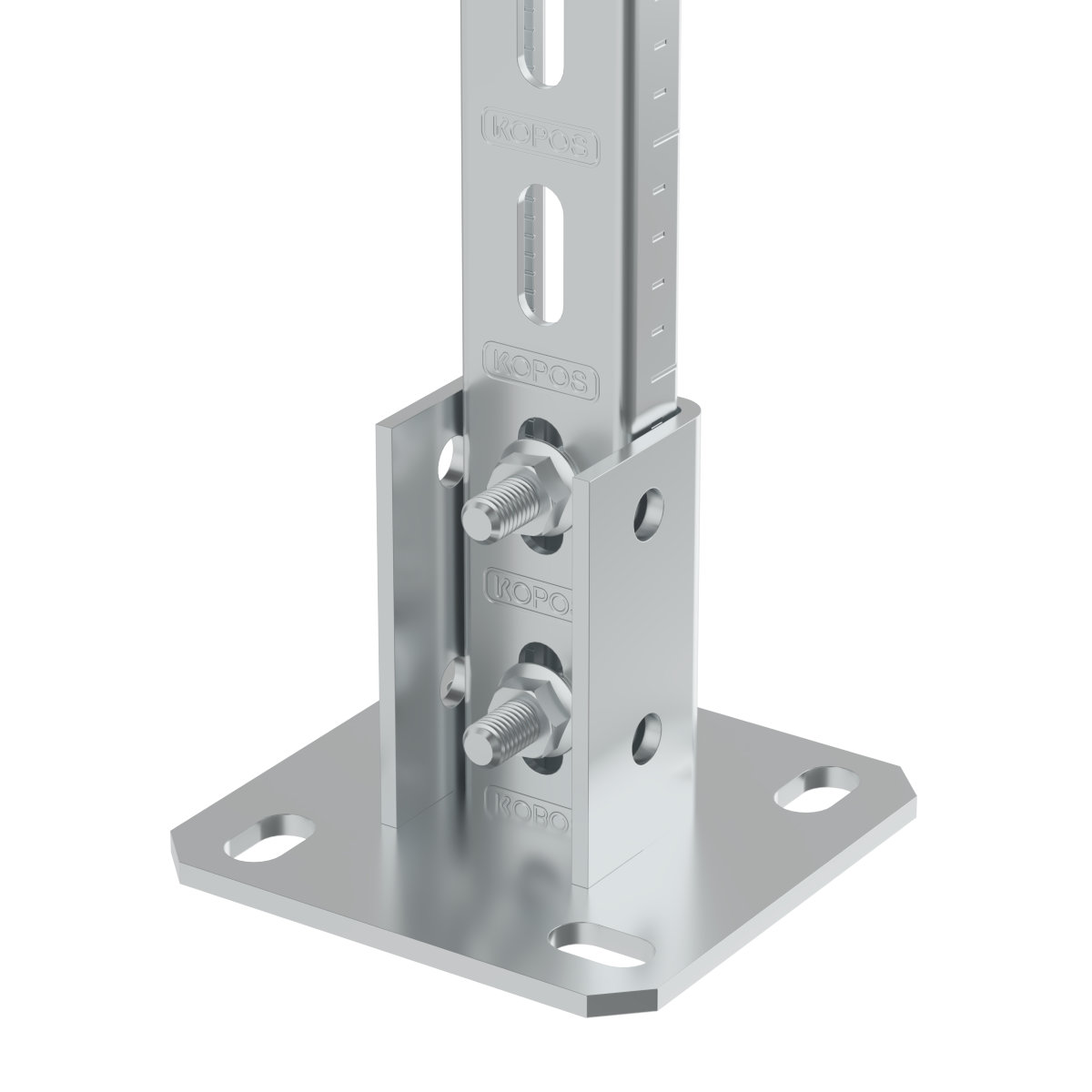

HMP 41_F head is designed for fixing of MP 41X41 or MP 41X21 mounting profiles to the floor or ceiling. The mounting profile MP 41X41 is fixed to the head with two S 10X70 screws, M 10 nuts and PD 10 washers. The mounting profile MP 41X21 is fixed to the head with two S 10X50 screws, M 10 nuts and PD 10 washers. By combining the head and the mounting profile, it is possible to create the ceiling profile (holder) of any length.
